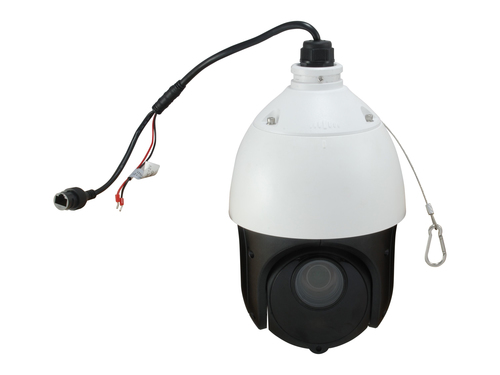

GEMINI PTZ IP Network Camera, 2-Megapixel, 20X Optical Zoom, Indoor/Outdoor, IR LEDs, two-way audio, 802.3at PoE
Model FCS-4051EAN 4015867202913
99 specifications
- ConnectivityWired
- TypeIP security camera
- Weight2 kg
- ColourBlack, White
- Form factorDome
- Minimum illumination0.01 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 2 kg
- Colour
- Black, White
- Form factor
- Dome
- Minimum illumination
- 0.01 lx
- Brand
- LevelOne
- Category
- Security Camera
- Model
- FCS-4051
- Part number
- FCS-4051
- EAN / UPC
- 4015867202913, 4015867227596
- Also known as
- LevelOne GEMINI PTZ IP Network Camera, 2-Megapixel, 20X Optical Zoom, Indoor/Outdoor, IR LEDs, two-way audio, 802.3at PoE
Specifications
99 specifications in 21 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE/FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| LED indicators | Power |
| International Protection (IP) code | IP66 |
| Weatherproof | Yes |
| Country of origin | China |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.01 lx |
| Field of view (FOV) angle | 58.3° |
| Tilt angle range | -15 - 90° |
| Tilt preset speed | 80 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 80 °/sec |
| Auto flip | Yes |
| Camera shutter speed | 1 - 1/10000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Optical zoom | 20x |
| Focal length range | 4.7 - 94 mm |
| Maximum aperture number | 3.5 |
| Minimum aperture number | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | AVI |
| Video compression formats | H.264, M-JPEG |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 60 fps |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Full HD | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio codecs | G.711/G.722/G.726/MP2L2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3at |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Cabling technology | 10/100Base-T(X) |
| Number of users | 16 user(s) |
| Quality of Service (QoS) support | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Maximum memory card size | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| Password protection | Yes |
| Anti-flicker | Yes |
| Digital watermark | Yes |
| Heartbeat | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 20 W |
| DC output voltage | 12 |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 65 °C |
| Operating relative humidity (H-H) | 0 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 295 mm |
| Diameter | 16.4 cm |
| Weight | 2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 218 mm |
| Package depth | 384 mm |
| Package height | 218 mm |
| Package weight | 2.2 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Quick installation guide | Yes |
| Resource CD | Yes |
Other features
| Specification | Value |
|---|---|
| Browser supported | Internet Explorer 9+ |
| Data transfer rate | 16 Mbit/s |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
| Pallet net height | 140 cm |
| Pallet net length | 80 cm |
| Pallet net width | 120 cm |
| Master (outer) case width | 460 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 460 mm |
| Master (outer) case gross weight | 9.5 kg |
| Products per master (outer) case | 4 pc(s) |
