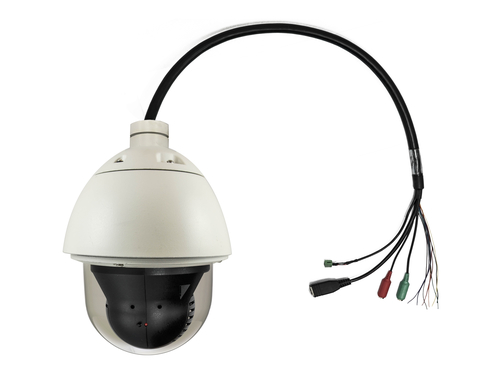

HUBBLE PTZ Dome IP Network Camera, 2-Megapixel, 30X Optical Zoom, Indoor/Outdoor, two-way audio, 802.3at PoE
Model FCS-4042EAN 846359034477
110 specifications
- ConnectivityWired
- TypeIP security camera
- Weight2.75 kg
- ColourBlack, White
- Form factorDome
- Minimum illumination0.05 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 2.75 kg
- Colour
- Black, White
- Form factor
- Dome
- Minimum illumination
- 0.05 lx
- Brand
- LevelOne
- Category
- Security Camera
- Model
- FCS-4042
- Part number
- FCS-4042
- EAN / UPC
- 846359034477, 4015867189931, 4015867189955
- Also known as
- LevelOne HUBBLE PTZ Dome IP Network Camera, 2-Megapixel, 30X Optical Zoom, Indoor/Outdoor, two-way audio, 802.3at PoE
Specifications
110 specifications in 22 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Auto pan mode | Yes |
| Auto patrol mode | Yes |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE, FCC, ONVIF, IP67, IK09, NEMA 4X |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Wall |
| Product colour | Black, White |
| LED indicators | Power |
| Protection features | Vandal proof |
| International Protection (IP) code | IP67 |
| IK code | IK09 |
| Weatherproof | Yes |
| Country of origin | Taiwan |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.05 lx |
| Tilt angle range | -20 - 200° |
| Pan range | 0 - 360° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/5 - 1/10000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 30x |
| Digital zoom | 16x |
| Focal length range | 4.3 - 129 mm |
| Auto focus | Yes |
| Focus adjustment | 1.6 - 5.0 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | Raw |
| Video compression formats | H.264, M-JPEG |
| Supported graphics resolutions | 320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 240p, 480p, 720p, 1080p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Automatic gain control | Yes |
| Back Light Compensation (BLC) | Yes |
| Flip & mirror | Yes |
| Full HD | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Portrait mode | Yes |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Time stamp overlay | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | 2-way |
| Built-in microphone | No |
| Voice codecs | G.711 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Supported network protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 64 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Terminal block port | Yes |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| Password protection type | User |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Motion sensor | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (typical) | 25.44 W |
| Power consumption (max) | 31.5 W |
| Power consumption (Power over Ethernet (PoE)) | 31.5 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 191 mm |
| Depth | 191 mm |
| Height | 282 mm |
| Weight | 2.75 kg |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package width | 269 mm |
| Package depth | 246 mm |
| Package height | 422 mm |
| Package weight | 2 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | AC |
| Screws included | Yes |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Resource CD | Yes |
Technical details
| Specification | Value |
|---|---|
| Iris | Yes |
| Number of video streams | 4 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
| Master (outer) case width | 565 mm |
| Master (outer) case length | 525 mm |
| Master (outer) case height | 445 mm |
| Master (outer) case gross weight | 20.7 kg |
| Products per master (outer) case | 4 pc(s) |
