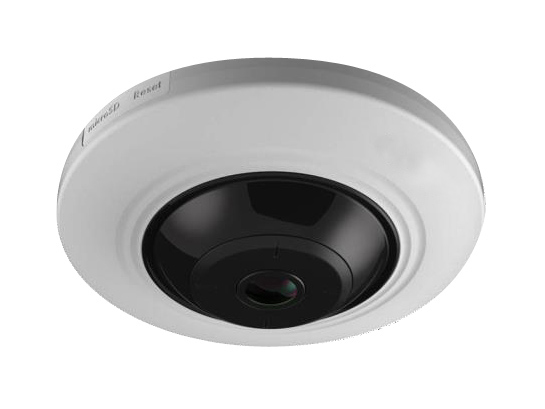

LevelOne FCS-3905 security camera Dome IP security camera Indoor
LevelOne

FCS-3905 security camera Dome IP security camera Indoor

2048 x 1536 pixels Ceiling

Model FCS-3905EAN 4015867221938

79 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight600 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlNo
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
600 g
Colour
White
Form factor
Dome
Camera pan control
No
Brand
LevelOne
Model
FCS-3905
Part number
FCS-3905
EAN / UPC
4015867221938
Also known as
LevelOne FCS-3905 security camera Dome IP security camera Indoor 2048 x 1536 pixels Ceiling

Specifications

79 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Infrared (IR) cut-off filterYes
CertificationCE/FCC

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
LED indicatorsPower
Country of originChina

Camera

Camera pan controlNo
Camera tilt controlNo
Minimum illumination0.005 lx
Field of view (FOV) angle180°
Lens viewing angle, horizontal180°
Lens viewing angle, vertical180°
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Night vision

Night visionYes
Night vision distance8 m
LED typeIR

Video

Maximum resolution2048 x 1536 pixels
Total megapixels3 MP
Video formats supportedMPEG4, H.264, H.265, M-JPEG
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 576, 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA)
Video streamingYes
Bit rate32 Kbps - 16 Mbps
Privacy maskingYes

Audio

Audio formats supportedG.711, G.722.1, G.726, MP2L2, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
Number of users32 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSDHC, MicroSDXC
Maximum memory card size128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Terminal block portYes
DC-in jackYes

Security

Password protectionYes
Digital watermarkYes
HeartbeatYes
IP address filteringYes
Video motion detectionYes

Management features

Reset buttonYes

Power

Power source typeDC, PoE
Power consumption (typical)4.8 W
Power consumption (Power over Ethernet (PoE))6.4 W
DC output voltage12
DC output current0.4 A
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Height41.2 mm
Diameter12 cm
Weight600 g

Sustainability

Compliance certificatesRoHS

Packaging data

Package width50 mm
Package depth125 mm
Package height125 mm
Package weight800 g
Package typeBox

Packaging content

Number of cameras1
Screws includedYes
Resource CDYes

Other features

Browser supportedIE9+
Compliance industry standardsONVIF (Profile S, Profile G), PSIA, CGI, ISAPI,Manufactured in ISO-9001 and ISO-14001 certified factory
I/O portsAudio In/Out

Technical details

Removable IR-cut filterYes
