LevelOne GEMINI Zoom Dome IP Network Camera, 4-Megapixel, H.265, IR LEDs, 802.3af PoE, 4.3X Optical Zoom
LevelOne

GEMINI Zoom Dome IP Network Camera, 4-Megapixel, H.265, IR LEDs, 802.3af PoE, 4.3X Optical Zoom

Model FCS-3411EAN 4015867207727

83 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1 kg
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.01 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1 kg
Colour
White
Form factor
Dome
Minimum illumination
0.01 lx
Brand
LevelOne
Model
FCS-3411
Part number
FCS-3411
EAN / UPC
4015867207727
Also known as
LevelOne GEMINI Zoom Dome IP Network Camera, 4-Megapixel, H.265, IR LEDs, 802.3af PoE, 4.3X Optical Zoom

Specifications

83 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
CertificationCF/FCC

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
LED indicatorsPower
International Protection (IP) codeIP67
IK codeIK10
Country of originChina

Camera

Minimum illumination0.01 lx
Lens viewing angle, horizontal98°
Lens viewing angle, vertical51°
Lens viewing angle, diagonal115°
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom4.3x
Focal length range2.7 - 13.5 mm
Focus adjustment1.6

Night vision

Night visionYes
Night vision distance30 m
LED typeIR

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video formats supportedMPEG4
Supported graphics resolutions320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Bit rate32 Kbps - 8 Mbps
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocolsTCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP,SMTP,FTP,SAMBA UPnP, SNMP, Bonjour
Number of users32 user(s)
User access levelAdministrator, Operator, User
Quality of Service (QoS) supportYes

Storage

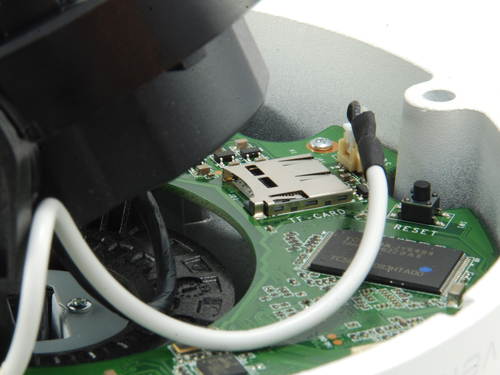

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), SDHC, SDXC
Maximum memory card size128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Password protectionYes
Active tampering alarmYes
Anti-flickerYes
Digital watermarkYes
HeartbeatYes
MirrorYes
Video motion detectionYes

Management features

Reset buttonYes

Power

Power source typeDC, PoE
Power consumption (max)10 W
Power consumption (Power over Ethernet (PoE))12 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-30 - 50 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width140 mm
Depth99.9 mm
Height140 mm
Weight1 kg

Packaging data

Package width430 mm
Package depth335 mm
Package height590 mm
Package typeBox

Packaging content

Number of cameras1
Screws includedYes
Resource CDYes

Other features

Browser supportedIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Logistics data

Harmonized System (HS) code85258900
Master (outer) case width430 mm
Master (outer) case length590 mm
Master (outer) case height355 mm
Master (outer) case gross weight11.9 kg
Products per master (outer) case24 pc(s)
