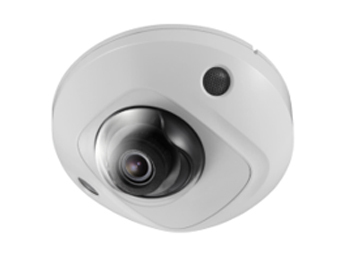

LevelOne GEMINI Fixed Dome IP Network Camera, 2-Megapixel, H.265, Vandalproof, 802.3af PoE, Indoor/Outdoor
LevelOne

GEMINI Fixed Dome IP Network Camera, 2-Megapixel, H.265, Vandalproof, 802.3af PoE, Indoor/Outdoor

Model FCS-3401EAN 4015867207680

74 specifications
  • ConnectivityWired
  • TypeIP security camera
  • ColourWhite
  • Form factorDome
  • Minimum illumination0 lx
  • Sensor typeCMOS
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Colour
White
Form factor
Dome
Minimum illumination
0 lx
Sensor type
CMOS
Brand
LevelOne
Model
FCS-3401
Part number
FCS-3401
EAN / UPC
4015867207680
Also known as
LevelOne GEMINI Fixed Dome IP Network Camera, 2-Megapixel, H.265, Vandalproof, 802.3af PoE, Indoor/Outdoor

Specifications

74 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE/FCC

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
LED indicatorsPower
International Protection (IP) codeIP67
IK codeIK08
WeatherproofYes

Camera

Minimum illumination0 lx
Field of view (FOV) angle114°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Zoom capabilityYes
Digital zoom8x
Fixed focal length2.8 mm
Focus adjustment2.0

Night vision

Night visionYes
Night vision distance10 m
LED typeIR

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, H.265, M-JPEG
Video compression formatsAVI
Supported graphics resolutions320 x 240, 352 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Bit rate256 Kbps - 16 Mbps
Flip & mirrorYes
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Portrait modeYes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsTCP/IP (IPv4/v6), UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, Bonjour,IEEE802.1x
Number of users32 user(s)
User access levelAdministrator, Operator, User
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Password protectionYes
Anti-flickerYes
Digital watermarkYes
HeartbeatYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresFace detection
MirrorYes

Management features

Reset buttonYes

Power

Power source typeDC, PoE
Power consumption (max)8.5 W
Power consumption (Power over Ethernet (PoE))10 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

Packaging content

Number of cameras1
Screws includedYes
Resource CDYes

Other features

Browser supportedIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Logistics data

Harmonized System (HS) code85258900
