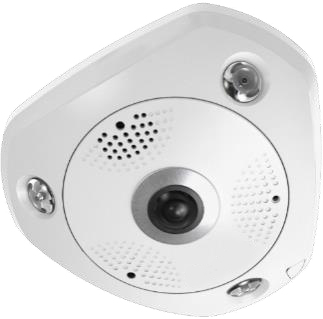

FCS-3095 security camera Spherical IP security camera Indoor & outdoor
4000 x 3000 pixels Ceiling/Wall/Desk
Model FCS-3095EAN 4015867203859
95 specifications
- ConnectivityWired
- TypeIP security camera
- Weight1.4 kg
- ColourWhite
- Form factorSpherical
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 1.4 kg
- Colour
- White
- Form factor
- Spherical
- Minimum illumination
- 0 lx
- Brand
- LevelOne
- Category
- Security Camera
- Model
- FCS-3095
- Part number
- FCS-3095
- EAN / UPC
- 4015867203859
- Also known as
- LevelOne FCS-3095 security camera Spherical IP security camera Indoor & outdoor 4000 x 3000 pixels Ceiling/Wall/Desk
Specifications
95 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Picture overlay | 128 x 128 pixels |
| Picture overlay | 24 bit |
| People counting function | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Ceiling/Wall/Desk |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Fog proof | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 180° |
| Lens viewing angle, vertical | 180° |
| Camera shutter speed | 1 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.7 mm (1 / 1.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 2.2 |
| Fixed focal length | 2 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 15 m |
| LED type | IR |
| Number of illumination LEDs | 3 |
| Infra-red wavelength | 850 nm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 4000 x 3000 pixels |
| Total megapixels | 12 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 720, 2560 x 2560, 3000 x 3000, 4000 x 3000 |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 32 Kbps - 16 Mbps |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Voice codecs | G.711, G.722.1, G.726, MP2L2, PCM |
| Bit rate range | 16 - 160 Kbit/s |
| Sample rates | 8 - 16 kHz |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.3at |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Number of users | 32 user(s) |
| User access level | Administrator, Operator, User |
| Live view | Yes |
| Number of simultaneous live view channels | 20 channels |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Password protection | Yes |
| Active tampering alarm | Yes |
| Anti-flicker | Yes |
| Digest authentication | Yes |
| Digital watermark | Yes |
| HTTPS encryption | Yes |
| Heartbeat | Yes |
| IP address filtering | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Abnormal sound detection, Crossing line, Heat map, Intrusion, Region entrance detection, Region exiting detection |
| Mirror | Yes |
| Security algorithms | 802.1x RADIUS |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 12.5 W |
| Power consumption (Power over Ethernet (PoE)) | 15 W |
| DC output voltage | 12 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 167 mm |
| Depth | 152.8 mm |
| Height | 55 mm |
| Weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
