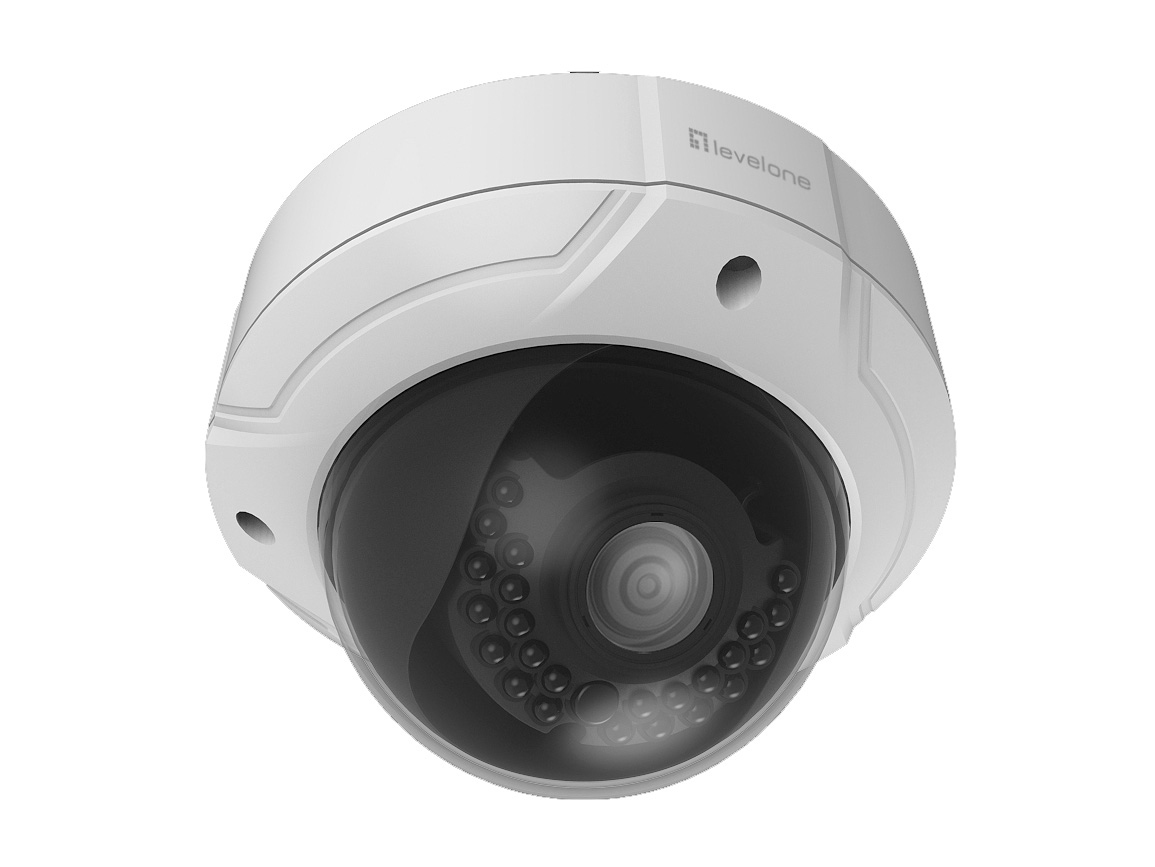

LevelOne GEMINI Varifocal Dome IP Network Camera, 4-Megapixel, Indoor/Outdoor, 802.3af PoE, IR LEDs, two-way audio
Model FCS-3085EAN 4015867199237
90 specifications
- ConnectivityWired
- TypeIP security camera
- Weight1 kg
- ColourWhite
- Form factorDome
- Minimum illumination0.01 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 1 kg
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0.01 lx
- Brand
- LevelOne
- Category
- Security Camera
- Model
- FCS-3085
- Part number
- FCS-3085
- EAN / UPC
- 4015867199237
- Also known as
- LevelOne GEMINI Varifocal Dome IP Network Camera, 4-Megapixel, Indoor/Outdoor, 802.3af PoE, IR LEDs, two-way audio
Specifications
90 specifications in 21 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE,FCC,UL, IEC60068-2-75Eh, 50J; EN50102, IK10, ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI,ISO-9001 |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| LED indicators | Power |
| Protection features | Vandal proof |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Country of origin | China |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.01 lx |
| Field of view (FOV) angle | 112° |
| Camera shutter speed | 1/3 - 1/10000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.8 - 12 mm |
| Maximum aperture number | 1.4 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video formats supported | Raw |
| Video compression formats | H.264, M-JPEG |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520 |
| Frame rate | 20 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Back Light Compensation (BLC) | Yes |
| Flip & mirror | Yes |
| Full HD | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Portrait mode | Yes |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Time stamp overlay | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | G.711, G.726 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, IPv6, Bonjour |
| Cabling technology | 10/100Base-T(X) |
| Number of users | 10 user(s) |
| Quality of Service (QoS) support | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSDHC, MicroSDXC |
| Maximum memory card size | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Terminal block port | Yes |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Password protection type | User |
| IP address filtering | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| AC input voltage | 12 V |
| Power consumption (max) | 5.5 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 99.9 mm |
| Height | 140 mm |
| Weight | 1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 430 mm |
| Package depth | 335 mm |
| Package height | 590 mm |
| Package weight | 25.6 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Screws included | Yes |
| Resource CD | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio input | Yes |
| Removable IR-cut filter | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 590 mm |
| Master (outer) case height | 335 mm |
| Master (outer) case gross weight | 25.6 kg |
| Products per master (outer) case | 24 pc(s) |
