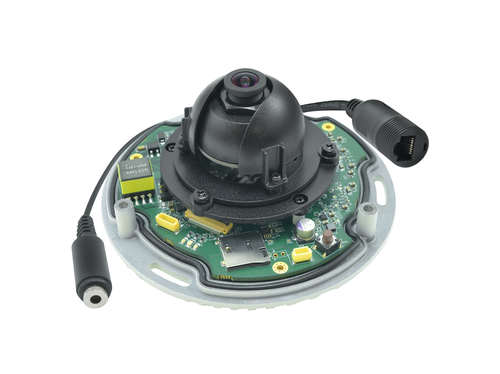

LevelOne Fixed Dome Network Camera, 5-Megapixel, Outdoor, PoE 802.3af, WDR, Vandalproof, Vibrationproof

LevelOne Fixed Dome Network Camera, 5-Megapixel, Outdoor, PoE 802.3af, WDR, Vandalproof, Vibrationproof

Model FCS-3072EAN 4015867189832

82 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight446 g
  • ColourBlack, White
  • Form factorDome
  • Minimum illumination0.05 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
446 g
Colour
Black, White
Form factor
Dome
Minimum illumination
0.05 lx
Brand
LevelOne
Model
FCS-3072
Part number
FCS-3072
EAN / UPC
4015867189832
Also known as
LevelOne Fixed Dome Network Camera, 5-Megapixel, Outdoor, PoE 802.3af, WDR, Vandalproof, Vibrationproof

Specifications

82 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
CertificationEMI: EN 50155:2008, EN 50121-3-2(EN 55011) EMS: - IEC 61000-4-2:2008(EN 50121-3-2) - IEC 61000-4-3:2006+A1:2008+A2:2010(EN 50121-3-2) - IEC 61000-4-4:2004+A1:2010(EN 50121-3-2) - IEC 61000-4-5:2005(EN 50121-3-2) - IEC 61000-4-6:2013(EN 50121-3-2) - IEC 61000-4-8:2009(EN 50121-3-2)

Design

Form factorDome
Mounting typeCeiling/wall
Product colourBlack, White
LED indicatorsPower
Protection featuresShock resistant
International Protection (IP) codeIP68
IK codeIK10
WeatherproofYes
Country of originTaiwan

Camera

Minimum illumination0.05 lx
Lens viewing angle, horizontal126.9°
White balanceAuto
Camera shutter typeElectronic
Camera shutter speed1/5 - 1/10000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3.2 mm (1 / 3.2")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Fixed focusYes
Fixed focal length1.9 mm
Focus adjustment2.8

Night vision

Night visionNo

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Video formats supportedRaw
Video compression formatsH.264, M-JPEG
Supported graphics resolutions320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2592 x 1944
Supported video modes240p, 480p, 720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Automatic gain controlYes
Back Light Compensation (BLC)Yes
Full HDYes
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness

Audio

Built-in microphoneNo

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsTCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size64 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
InterfaceRJ-45

Management features

Reset buttonYes

Power

Power source typePoE
Power consumption (typical)6.49 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)10 - 85%

System requirements

Windows operating systems supportedWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win

Weight & dimensions

Width110 mm
Depth58 mm
Height110 mm
Weight446 g

Packaging data

Package width200 mm
Package depth200 mm
Package height90 mm
Package typeBox

Packaging content

Number of cameras1
Screws includedYes
Quick installation guideYes
Resource CDYes

Technical details

IrisYes
Back light compensation methodYes
Number of video streams2

Logistics data

Master (outer) case width420 mm
Master (outer) case length420 mm
Master (outer) case height390 mm
Master (outer) case gross weight13.2 kg
Products per master (outer) case16 pc(s)
