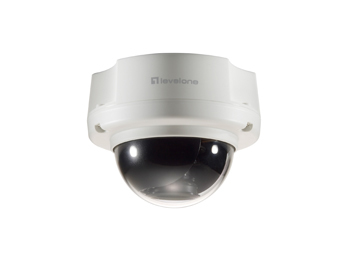

FCS-3062 security camera Dome IP security camera Indoor
1920 x 1080 pixels Ceiling
Model FCS-3062EAN 4015867187715
61 specifications
- ConnectivityWired
- TypeIP security camera
- Weight960 g
- ColourWhite
- Form factorDome
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 960 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0 lx
- Brand
- LevelOne
- Category
- Security Camera
- Model
- FCS-3062
- Part number
- FCS-3062
- EAN / UPC
- 4015867187715
- Also known as
- LevelOne FCS-3062 security camera Dome IP security camera Indoor 1920 x 1080 pixels Ceiling
Specifications
61 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | No |
| Day/night mode | Yes |
| Certification | CE, FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| LED indicators | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Camera shutter speed | 0.00005 - 0.2 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
Lens system
| Specification | Value |
|---|---|
| Digital zoom | 3.2x |
| Focal length range | 3.3 - 10.5 mm |
| Focus adjustment | 1.4 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Number of illumination LEDs | 12 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | ASF |
| Video compression formats | H.264, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 240, 640 x 352, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA) |
| Frame rate | 25 fps |
Audio
| Specification | Value |
|---|---|
| Audio system | 2-way |
| Audio formats supported | AMR |
| Audio detection | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (typical) | 6 W |
| DC output voltage | +12V |
| DC output current | 1 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 149.9 mm |
| Depth | 149.9 mm |
| Height | 115.6 mm |
| Weight | 960 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | 802.3af PoE |
