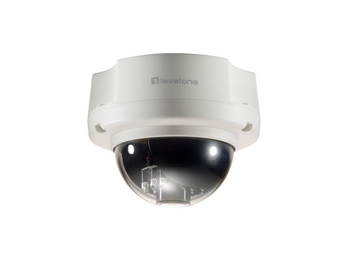

LevelOne FCS-3052 security camera Dome IP security camera Indoor
2032 x 1536 pixels Ceiling
Model FCS-3052EAN 4015867184257
57 specifications
- ConnectivityWired
- TypeIP security camera
- Weight507 g
- ColourWhite
- Form factorDome
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 507 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0 lx
- Brand
- LevelOne
- Category
- Security Camera
- Model
- FCS-3052
- Part number
- FCS-3052
- EAN / UPC
- 4015867184257
- Also known as
- LevelOne FCS-3052 security camera Dome IP security camera Indoor 2032 x 1536 pixels Ceiling
Specifications
57 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | CE, FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| LED indicators | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Camera shutter speed | 0.00005 - 0.5 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Digital zoom | 4x |
| Fixed focal length | 4 mm |
| Focus adjustment | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Number of illumination LEDs | 12 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2032 x 1536 pixels |
| Total megapixels | 3 MP |
| Video formats supported | ASF |
| Video compression formats | H.264, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 240, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Audio system | 2-way |
| Audio formats supported | AMR |
| Built-in microphone | Yes |
| Audio detection | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| DC output voltage | +12V |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 149.9 mm |
| Depth | 149.9 mm |
| Height | 115.6 mm |
| Weight | 507 g |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | 802.3af PoE |
Compare LevelOne FCS-3052 security camera Dome IP security camera Indoor
Compare any products- LevelOne FCS-3052 security camera Dome IP security camera Indoor vsLevelOne FCS-5052 security camera Bullet IP security camera OutdoorCompare specs
- LevelOne FCS-3052 security camera Dome IP security camera Indoor vsLevelOne Fixed Dome IP Network Camera, 2-Megapixel, 802.3af PoE, IR LEDsCompare specs
- LevelOne FCS-3052 security camera Dome IP security camera Indoor vsLevelOne FCS-5062 security camera Bullet IP security camera OutdoorCompare specs

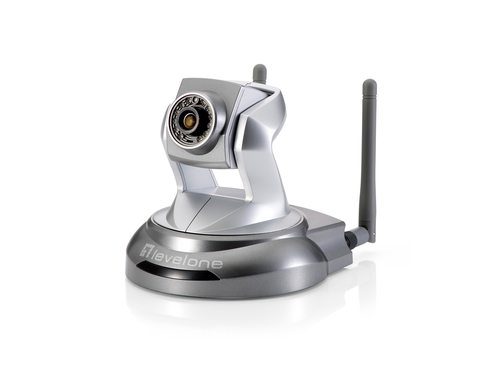

- LevelOne FCS-3052 security camera Dome IP security camera Indoor vsLevelOne PT Network Camera, 5-Megapixel, 150Mbps 802.11b/g/n, Day & Night, IR LEDsCompare specs
