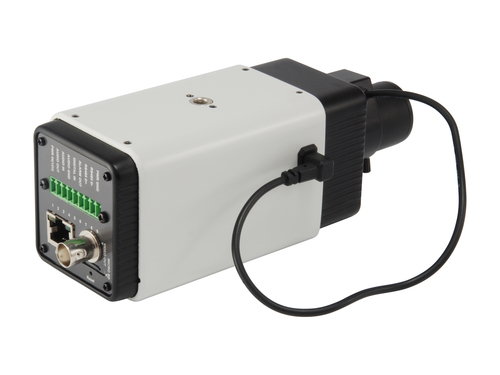

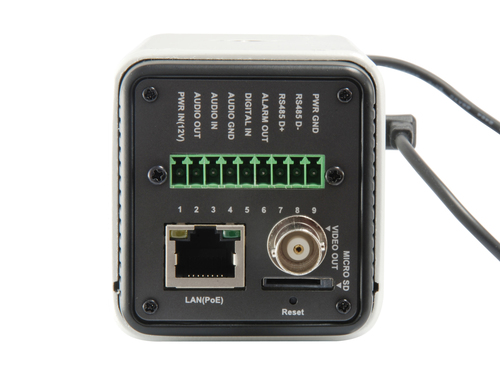

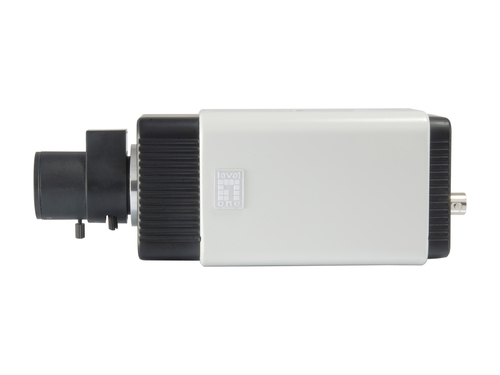

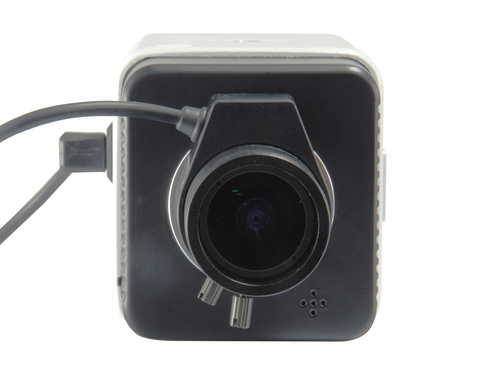

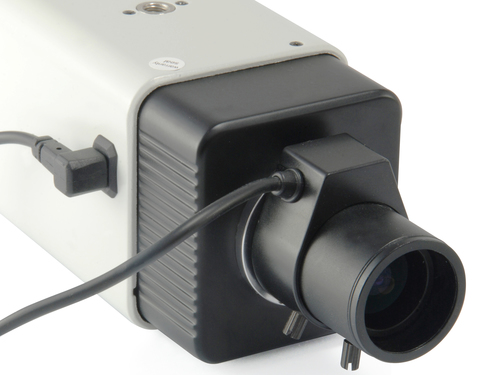

LevelOne HUBBLE Varifocal IP Network Camera, 5-Megapixel, H.265, 802.3af PoE

LevelOne HUBBLE Varifocal IP Network Camera, 5-Megapixel, H.265, 802.3af PoE

Model FCS-1158EAN 4015867206386

91 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight360 g
  • ColourBlack, Grey
  • Form factorBullet
  • Minimum illumination0.05 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
360 g
Colour
Black, Grey
Form factor
Bullet
Minimum illumination
0.05 lx
Brand
LevelOne
Model
FCS-1158
Part number
FCS-1158
EAN / UPC
4015867206386
Also known as
LevelOne HUBBLE Varifocal IP Network Camera, 5-Megapixel, H.265, 802.3af PoE

Specifications

91 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCF/FCC

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourBlack, Grey
LED indicatorsPower
Country of originTaiwan

Camera

Minimum illumination0.05 lx
Field of view (FOV) angle89.1°
White balanceAuto
Camera shutter typeElectronic
Camera shutter speed1/5 ~ 1/16000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Number of lenses1
Focal length range3.6 - 10 mm
Maximum aperture number2.8
Minimum aperture number1.5

Night vision

Night visionYes

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Video formats supportedRaw
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions320 x 240, 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2592 x 1944
Supported video modes240p, 480p, 720p, 1080p
Frame rate30 fps
Noise reductionYes
3D NR (Noise Reduction)Yes
Gain control typeAuto
Full HDYes
Image quality adjustmentBrightness, Contrast, Sharpness

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, IPv6, Bonjour
Cabling technology10/100/1000Base-T(X)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSDHC, MicroSDXC
Maximum memory card size64 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-422 ports1
RS-485 ports1
Composite video out1
BNC output ports1
Terminal block portYes
InterfaceRJ-45

Security

Video motion detectionYes

Management features

Web browserYes
Reset buttonYes

Power

Power source typeDC, PoE
Power consumption (typical)7 W
Power consumption (Power over Ethernet (PoE))12.95 W
DC output voltage12
DC output current0.6 A
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)10 - 50 °C
Operating relative humidity (H-H)10 - 90%

System requirements

Windows operating systems supportedWindows 10, Windows 7, Windows 8

Weight & dimensions

Width58 mm
Depth62 mm
Height125 mm
Weight360 g

Packaging data

Package width200 mm
Package depth90 mm
Package height200 mm
Package weight735 g
Package typeBox

Packaging content

Number of cameras1
Resource CDYes

Technical details

IrisYes
Number of video streams2

Logistics data

Harmonized System (HS) code85258900
Master (outer) case width405 mm
Master (outer) case length367 mm
Master (outer) case height405 mm
Master (outer) case gross weight11.8 kg
Products per master (outer) case16 pc(s)
