LevelOne Fixed Network Camera, 5-Megapixel, 802.3af PoE, Day & Night, WDR

Model FCS-1152EAN 846359035344

82 specifications

ConnectivityWired
TypeIP security camera
Weight438 g
ColourBlack, Grey, White
Form factorBox
Minimum illumination0.05 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 438 g
Colour: Black, Grey, White
Form factor: Box
Minimum illumination: 0.05 lx

Brand: LevelOne
Category: Security Camera
Model: FCS-1152
Part number: FCS-1152
EAN / UPC: 846359035344, 4015867191262
Also known as: LevelOne Fixed Network Camera, 5-Megapixel, 802.3af PoE, Day & Night, WDR

Specifications

82 specifications in 21 groups

Performance

Specification	Value
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	CE, FCC, ONVIF

Design

Specification	Value
Form factor	Box
Mounting type	Wall
Product colour	Black, Grey, White
LED indicators	Power

Camera

Specification	Value
Minimum illumination	0.05 lx
Lens viewing angle, horizontal	70.9°
White balance	Auto
Camera shutter type	Electronic
Camera shutter speed	1/5 - 1/10000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3.2 mm (1 / 3.2")
Progressive scan	Yes

Lens system

Specification	Value
Number of lenses	1
Zoom capability	Yes
Focal length range	2.8 - 12 mm
Focus	Manual
Focus adjustment	1.4

Night vision

Specification	Value
Night vision	Yes

Video

Specification	Value
Maximum resolution	2592 x 1944 pixels
Total megapixels	5 MP
Video formats supported	Raw
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Supported video modes	240p, 480p, 720p, 1080p
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Automatic gain control	Yes
Back Light Compensation (BLC)	Yes
Full HD	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness

Audio

Specification	Value
Audio formats supported	G.711
Built-in microphone	No
Voice codecs	G.711

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	64 GB

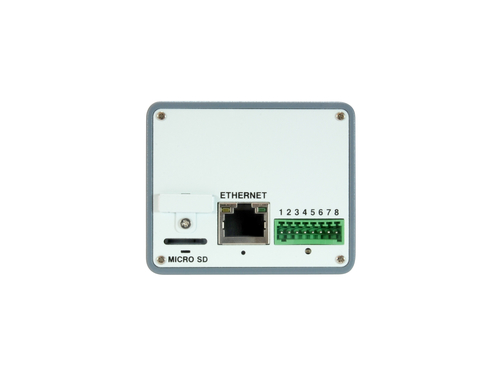

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Terminal block port	Yes
DC-in jack	Yes
Interface	RJ-45

Management features

Specification	Value
Reset button	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (typical)	4.002 W
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 85%

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win

Weight & dimensions

Specification	Value
Width	67 mm
Depth	169 mm
Height	65 mm
Weight	438 g

Sustainability

Specification	Value
Compliance certificates	RoHS

Packaging data

Specification	Value
Package width	200 mm
Package depth	90 mm
Package height	200 mm
Package weight	735 g
Package type	Box

Packaging content

Specification	Value
Number of cameras	1
Screws included	Yes
Quick installation guide	Yes
Resource CD	Yes

Technical details

Specification	Value
Iris	Yes
Back light compensation method	Yes
Number of video streams	2

Logistics data

Specification	Value
Master (outer) case width	405 mm
Master (outer) case length	367 mm
Master (outer) case height	405 mm
Master (outer) case gross weight	12.8 kg
Products per master (outer) case	16 pc(s)
