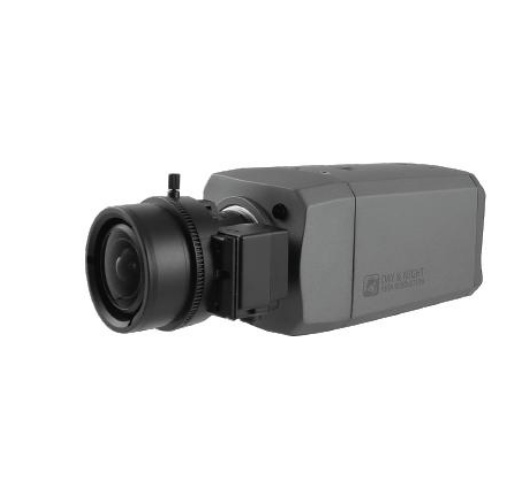

FCS-1132 security camera Box IP security camera
2032 x 1536 pixels
Model FCS-1132EAN 4015867184127
37 specifications
- ConnectivityWired
- TypeIP security camera
- Weight348 g
- ColourBlack
- Form factorBox
- Minimum illumination0.5 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 348 g
- Colour
- Black
- Form factor
- Box
- Minimum illumination
- 0.5 lx
- Brand
- LevelOne
- Category
- Security Camera
- Model
- FCS-1132
- Part number
- FCS-1132
- EAN / UPC
- 4015867184127
- Also known as
- LevelOne FCS-1132 security camera Box IP security camera 2032 x 1536 pixels
Specifications
37 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Alarm input/output | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Box |
| Product colour | Black |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.5 lx |
| White balance | Auto |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2032 x 1536 pixels |
| Total megapixels | 3 MP |
| Video formats supported | H.264, M-JPEG, MPEG4 |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnp, Bonjour, RTP, RTSP, RTCP |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| DC output voltage | +12V |
| Power over Ethernet (PoE) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 110 mm |
| Height | 50 mm |
| Weight | 348 g |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE802.3af PoE |
