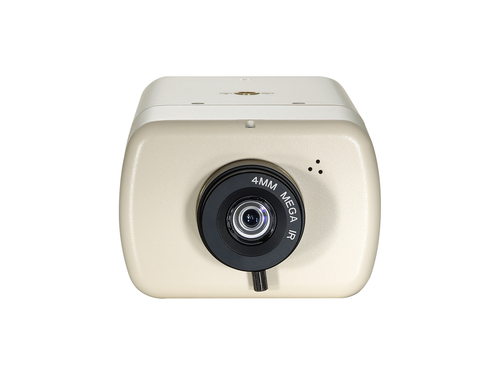

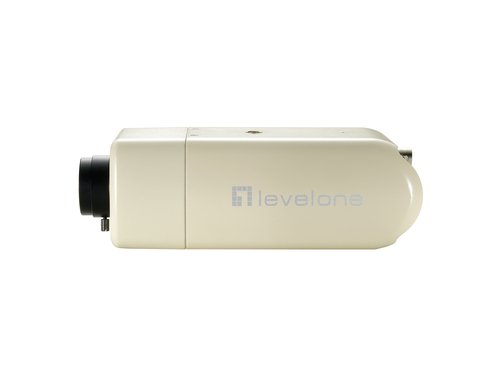

LevelOne Fixed Network Camera, 2-Megapixel, 802.3af PoE, Day & Night

Model FCS-1131EAN 846359001271

87 specifications

ConnectivityWired
TypeIP security camera
Weight380 g
ColourBeige
Form factorBox
Minimum illumination0.02 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 380 g
Colour: Beige
Form factor: Box
Minimum illumination: 0.02 lx

Brand: LevelOne
Category: Security Camera
Model: FCS-1131
Part numbers: FCS-1131, FCS-1131 1+ KIT
EAN / UPC: 846359001271, 4015867158005, 8463590012716
Also known as: LevelOne Fixed Network Camera, 2-Megapixel, 802.3af PoE, Day & Night

Specifications

87 specifications in 20 groups

Performance

Specification	Value
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Alarm input/output	Yes
Certification	CE, FCC, ONVIF

Design

Specification	Value
Form factor	Box
Mounting type	Ceiling/wall
Product colour	Beige
LED indicators	Activity, Link, Power

Camera

Specification	Value
Minimum illumination	0.02 lx
Lens viewing angle, horizontal	65.4°
White balance	Auto
Camera shutter type	Electronic
Camera shutter speed	1 - 1/10000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Digital zoom	8x
Fixed focal length	4 mm
Focus adjustment	1.5

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video formats supported	AVI
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	1280 x 1024 (SXGA), 1920 x 1080 (HD 1080)
Supported video modes	1080p
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
3D NR (Noise Reduction)	Yes
Automatic gain control	Yes
Flip & mirror	Yes
Full HD	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Portrait mode	Yes
Privacy masking	Yes
Text caption overlay	Yes
Time stamp overlay	Yes

Audio

Specification	Value
Audio system	2-way
Built-in microphone	No
Voice codecs	G.711, G.726

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocols	IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum memory card size	32 GB

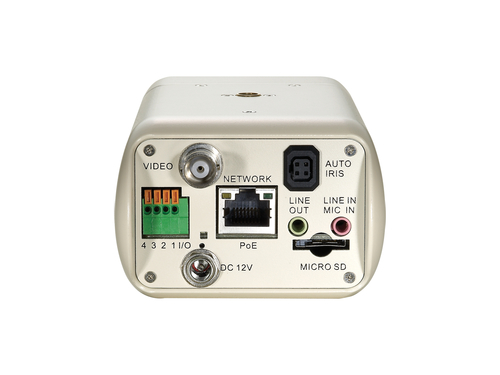

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
BNC output ports	1
Microphone in	Yes
Headphone outputs	1
Terminal block port	Yes
DC-in jack	Yes
Interface	RJ-45

Security

Specification	Value
Password protection type	User
HTTPS encryption	Yes
IP address filtering	Yes
Motion sensor	Yes

Management features

Specification	Value
Reset button	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (typical)	5 W
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90%

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista

Weight & dimensions

Specification	Value
Width	125 mm
Depth	53 mm
Height	82 mm
Weight	380 g

Packaging data

Specification	Value
Package width	200 mm
Package depth	120 mm
Package height	220 mm
Package weight	900 g

Packaging content

Specification	Value
Manual	Yes
AC adapter included	Yes
Quick installation guide	Yes

Technical details

Specification	Value
Iris	Yes
Back light compensation method	Yes
Number of video streams	2

Logistics data

Specification	Value
Harmonized System (HS) code	85258900
