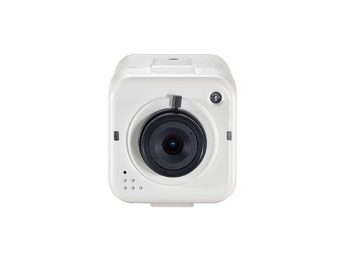

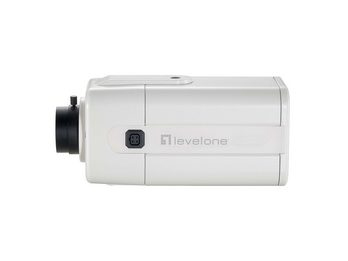

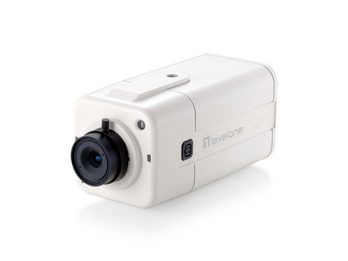

LevelOne FCS-1122 security camera Box IP security camera

LevelOne FCS-1122 security camera Box IP security camera

1280 x 800 pixels

Model FCS-1122EAN 846359020777

52 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight380 g
  • ColourWhite
  • Form factorBox
  • Minimum illumination1 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
380 g
Colour
White
Form factor
Box
Minimum illumination
1 lx
Brand
LevelOne
Model
FCS-1122
Part number
FCS-1122
EAN / UPC
846359020777, 4015867179734, 8463590207778
Also known as
LevelOne FCS-1122 security camera Box IP security camera 1280 x 800 pixels

Specifications

52 specifications in 18 groups

Performance

TypeIP security camera
Connectivity technologyWired
PTZ controlNo
Day/night modeYes
CertificationCE, FCC

Design

Form factorBox
Product colourWhite
LED indicatorsYes

Camera

Minimum illumination1 lx
Camera shutter speed0.000040816 - 0.2 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")

Lens system

Digital zoom4x
Fixed focal length4.2 mm
Focus adjustment1.4

Video

Maximum resolution1280 x 800 pixels
Video formats supportedASF, H.264, M-JPEG, MPEG4
Supported graphics resolutions320 x 192, 1280 x 800 (WXGA), 640 x 480 (VGA)
Frame rate30 fps

Audio

Built-in speaker(s)Yes
Audio system2-way
Audio formats supportedAMR
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedNo

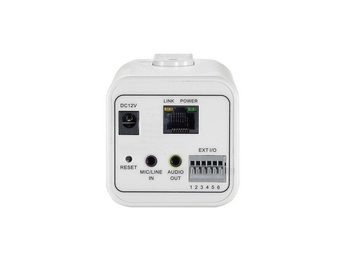

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
Headphone outputs1
DC-in jackYes
InterfaceRJ-45

Security

IP address filteringYes
Video motion detectionYes

Management features

Reset buttonYes

Power

Power source typePoE
Power consumption (typical)5 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)10 - 80%

System requirements

Windows operating systems supportedYes

Weight & dimensions

Width60 mm
Height60 mm
Length120 mm
Weight380 g

Packaging content

Cables includedLAN (RJ-45)
ManualYes
AC adapter includedYes
Quick start guideYes

Other features

Compliance industry standardsIEEE 802.3af
