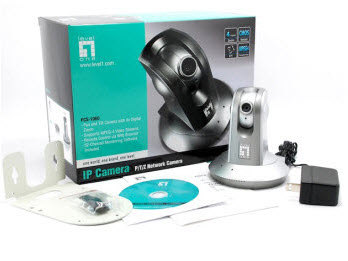

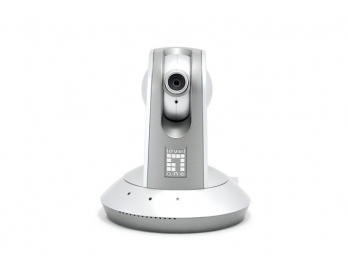

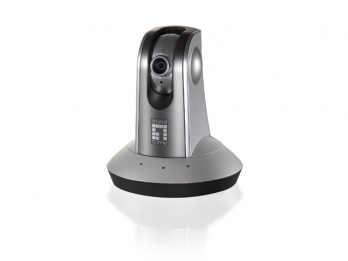

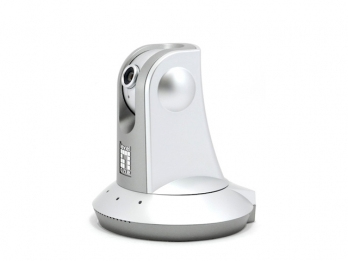

LevelOne FCS-1060 security camera

LevelOne FCS-1060 security camera

640 x 480 pixels

Model FCS-1060EAN 4015867128091

35 specifications
  • Memory32 MB
  • Weight222 g
  • CertificationFCC, CE
  • Minimum illumination1 lx
  • Sensor typeCMOS
  • Focal length range0 - 4 mm
See all specifications

Overview

Memory
32 MB
Weight
222 g
Certification
FCC, CE
Minimum illumination
1 lx
Sensor type
CMOS
Focal length range
0 - 4 mm
Brand
LevelOne
Model
FCS-1060
Part number
FCS-1060
EAN / UPC
4015867128091, 5742220055341
Also known as
LevelOne FCS-1060 security camera 640 x 480 pixels

Specifications

35 specifications in 16 groups

Performance

CertificationFCC, CE

Camera

Minimum illumination1 lx
Tilt angle range0 - 125°
Pan range0 - 350°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")

Lens system

Focal length range0 - 4 mm

Night vision

Night visionNo

Video

Maximum resolution640 x 480 pixels
Video formats supportedMPEG4
Frame rate30 fps

Audio

Audio formats supportedAAC
Audio codecsGSM-AMR/ MPEG4 AAC
Signal-to-Noise Ratio (SNR)60 dB
Built-in microphoneYes

Network

Wi-FiNo
Supported network protocolsUPnP, TCP/IP, RTSP/RTP/RTCP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP, DDNS, PPPoE
Cabling technology10/100Base-T(X)

Storage

Flash memory4 MB
Internal memory32 MB

Ports & interfaces

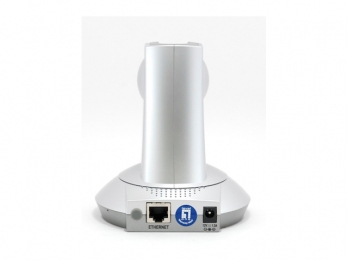

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Video motion detectionYes

Management features

Web-based managementYes
Reset buttonYes

Power

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 85%

Weight & dimensions

Weight222 g

Other features

Compatible operating systemsMicrosoft Windows 98SE, ME, 2000, XP
Data transfer rate100 Mbit/s
Dimensions (WxDxH)121.4 x 110 x 103 mm
F-number (relative aperture)F2.0
Power requirementsDC 12 V, 1.5 A
I/O ports1 x RJ-45
