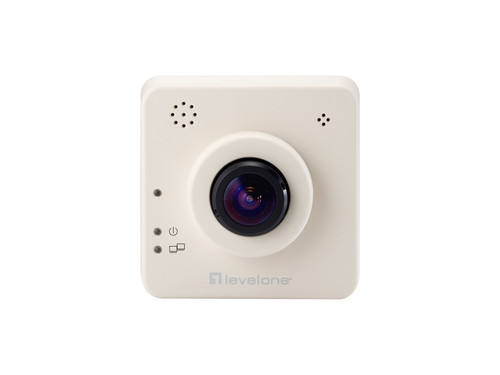

LevelOne Panoramic Network Camera, 2-Megapixel, 802.3af PoE, Day & Night

Model FCS-0071EAN 4015867177099

71 specifications

Memory128 MB
ConnectivityWired
TypeIP security camera
Weight230 g
ColourWhite
Form factorCube

See all specifications

Overview

Memory: 128 MB
Connectivity: Wired
Type: IP security camera
Weight: 230 g
Colour: White
Form factor: Cube

Brand: LevelOne
Category: Security Camera
Model: FCS-0071
Part number: FCS-0071
EAN / UPC: 4015867177099
Also known as: LevelOne Panoramic Network Camera, 2-Megapixel, 802.3af PoE, Day & Night

Specifications

71 specifications in 19 groups

Performance

Specification	Value
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Day/night mode	Yes
Certification	CE, FCC

Design

Specification	Value
Form factor	Cube
Mounting type	Ceiling/wall
Product colour	White
LED indicators	Yes
Country of origin	Taiwan

Camera

Specification	Value
Minimum illumination	1.5 lx
Field of view (FOV) angle	185°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")

Lens system

Specification	Value
Zoom capability	Yes
Digital zoom	10x
Fixed focal length	1.25 mm
Focus adjustment	2.0

Night vision

Specification	Value
Night vision	Yes
LED type	IR

Video

Specification	Value
Maximum resolution	1600 x 1200 pixels
Total megapixels	2 MP
Video formats supported	AVI
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	800 x 450, 640 x 360, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA)
Supported video modes	720p
Frame rate	30 fps
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness

Audio

Specification	Value
Audio system	2-way
Built-in microphone	Yes
Voice codecs	G.711

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP, RTSP, RTP, Bonjour, UpnP

Storage

Specification	Value
Built-in HDD	No

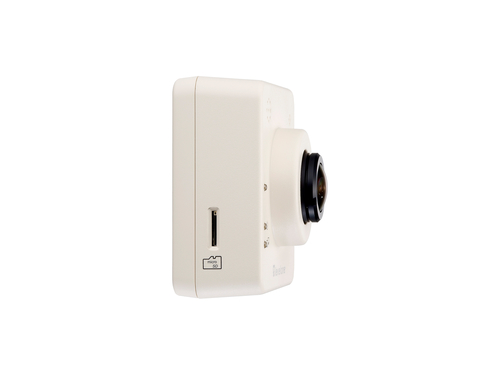

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Flash memory	128 MB
Internal memory	128 MB

Ports & interfaces

Specification	Value

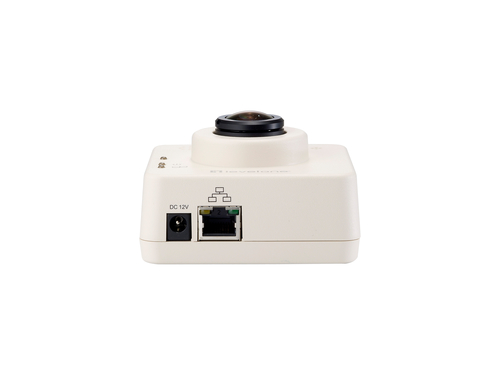

Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Headphone outputs	1

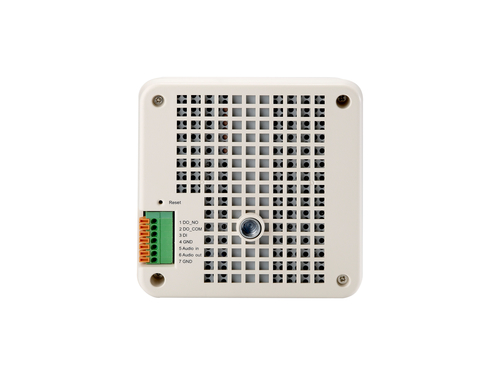

Terminal block port	Yes
DC-in jack	Yes
Interface	RJ-45

Security

Specification	Value
Password protection type	User

Management features

Specification	Value
Reset button	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (max)	5 W
DC output current	2 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	0 - 90%

System requirements

Specification	Value
Windows operating systems supported	Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64,

Weight & dimensions

Specification	Value
Width	81 mm
Depth	81 mm
Height	52 mm
Weight	230 g

Packaging data

Specification	Value
Package width	89 mm
Package depth	198 mm
Package height	278 mm
Package weight	830 g

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
Mounting brackets included	Yes
Manual	Yes
AC adapter included	Yes
Quick installation guide	Yes
