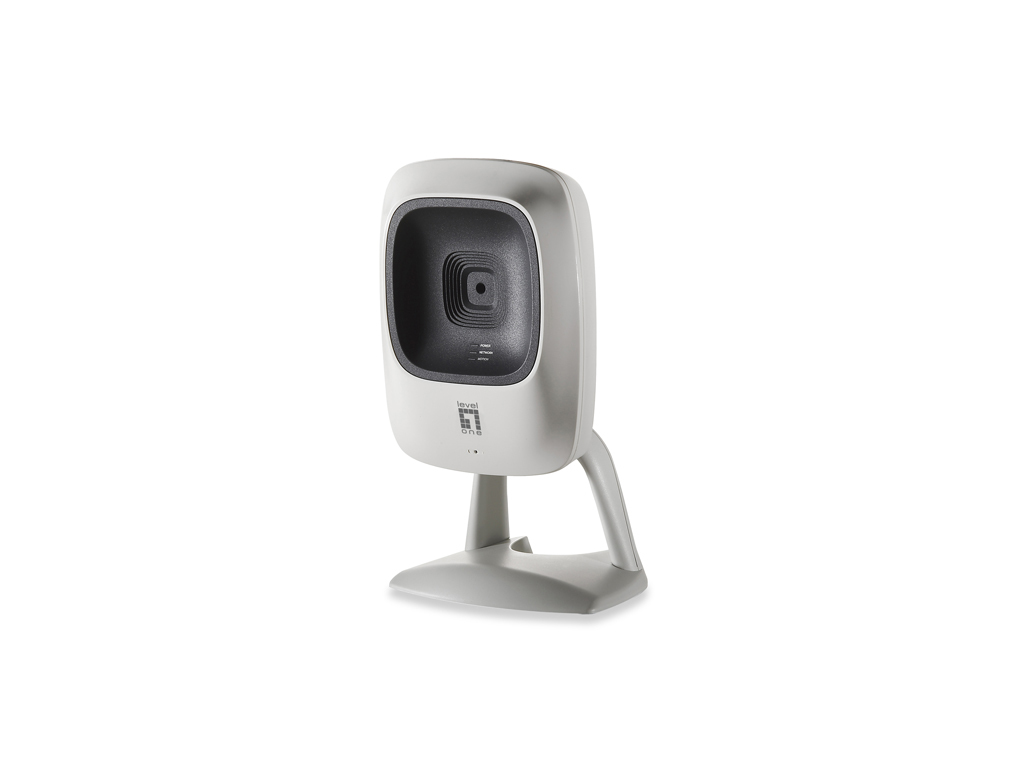

LevelOne 1.3-Megapixel Network Camera

LevelOne 1.3-Megapixel Network Camera

Model FCS-0040EAN 4015867159217

67 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight235 g
  • ColourWhite
  • Form factorBox
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
235 g
Colour
White
Form factor
Box
Brand
LevelOne
Model
FCS-0040
Part number
FCS-0040
EAN / UPC
4015867159217
Also known as
LevelOne 1.3-Megapixel Network Camera

Specifications

67 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlNo
Light exposure modesAuto
CertificationCE, FCC

Design

Form factorBox
Mounting typeDesk/Wall
Product colourWhite
LED indicatorsActivity, Network, Power
Country of originTaiwan

Camera

Minimum illumination3 lx
Lens viewing angle, horizontal50.5°
Lens viewing angle, vertical39.1°
White balanceAWC

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 5 mm (1 / 5")
Progressive scanYes

Lens system

Zoom capabilityYes
Digital zoom16x
Fixed focal length2 mm

Night vision

Night visionNo

Video

Maximum resolution1280 x 960 pixels
Total megapixels1.3 MP
Video formats supportedAVI
Video compression formatsH.264, M-JPEG, MPEG4
Supported graphics resolutions320 x 240, 640 x 480 (VGA), 1280 x 960
Frame rate30 fps
Automatic gain controlYes
Full HDNo
Image quality adjustmentSharpness
Text caption overlayYes
Time stamp overlayYes

Audio

Audio system2-way
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsIPv4, TCP/IP, HTTP, HTTPS, DHCP, SMTP, FTP, UPnP, DDNS, NTP, RTP, RTCP, RTSP, SMB
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Flash memory8 MB
Internal memory128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Password protection typeUser
HTTPS encryptionYes
IP address filteringYes
Motion sensorYes

Management features

Web-based managementYes
Reset buttonYes

Power

Power consumption (max)8 W
DC output voltage12
DC output current1 A
Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 80%
Storage relative humidity (H-H)0 - 90%

System requirements

Windows operating systems supportedYes

Weight & dimensions

Width114.3 mm
Depth41.4 mm
Height141.6 mm
Weight235 g

Packaging content

AC adapter includedYes
Quick installation guideYes
Resource CDYes

Other features

Audio output1
