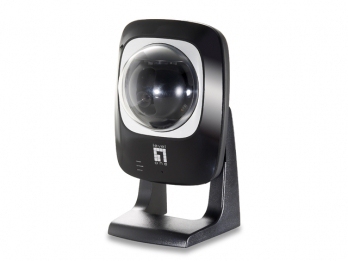

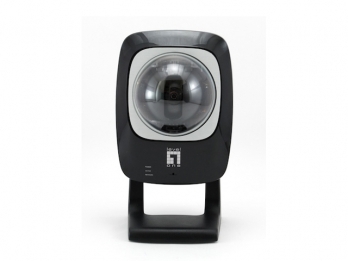

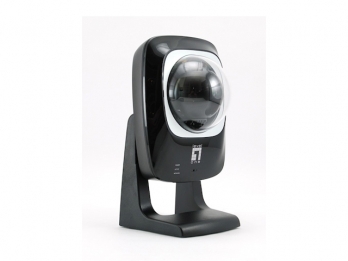

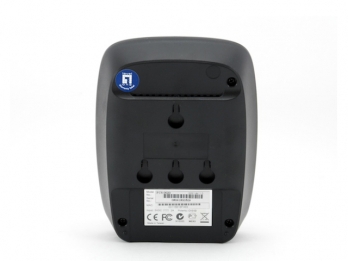

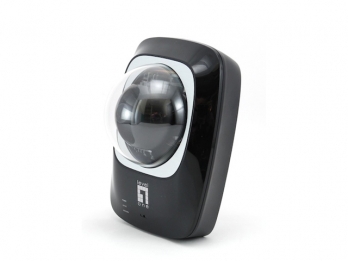

LevelOne P/T Network Camera

LevelOne P/T Network Camera

Model FCS-0020EAN 999996677108

60 specifications
  • Memory32 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight367.5 g
  • ColourBlack
  • Form factorDome
See all specifications

Overview

Memory
32 MB
Connectivity
Wired
Type
IP security camera
Weight
367.5 g
Colour
Black
Form factor
Dome
Brand
LevelOne
Model
FCS-0020
Part number
FCS-0020
EAN / UPC
999996677108, 1320010048861, 4015867141526
Also known as
LevelOne P/T Network Camera

Specifications

60 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
CertificationFCC, CE

Design

Form factorDome
Product colourBlack
Country of originTaiwan

Camera

Minimum illumination1 lx
Tilt angle range0 - 64°
Pan range63 - 63°
White balanceAuto
Camera shutter typeElectronic

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")

Lens system

Zoom capabilityYes
Digital zoom4x
Fixed focal length4.57 mm
Focus adjustment2.0
Normal focusing range0.5 - 5 m

Night vision

Night visionNo

Video

Maximum resolution640 x 480 pixels
Video formats supportedAVI
Video compression formatsM-JPEG, MPEG4
Supported graphics resolutions160 x 120, 320 x 240, 640 x 480 (VGA)
Supported video modes240p, 480p
Frame rate30 fps
Automatic gain controlYes

Audio

Signal-to-Noise Ratio (SNR)58 dB
Built-in microphoneYes
Voice codecsG.711, G.726

Network

Ethernet LANYes
Wi-FiNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4, TCP/IP, SMTP, HTTP, DHCP, NTP, RTSP/RTP, UPnP

Storage

Built-in HDDNo
Flash memory4 MB
Internal memory32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
Headphone outputs1
DC-in jackYes

Security

Motion sensorYes

Management features

Reset buttonYes

Power

DC output voltage5
DC output current2 A
Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 80%
Storage relative humidity (H-H)10 - 80%

System requirements

Windows operating systems supportedWindows 2000, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP

Weight & dimensions

Width52.1 mm
Depth80 mm
Height113.5 mm
Weight367.5 g

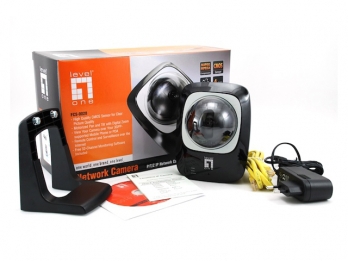

Packaging content

ManualYes
AC adapter includedYes
Quick installation guideYes
Resource CDYes
