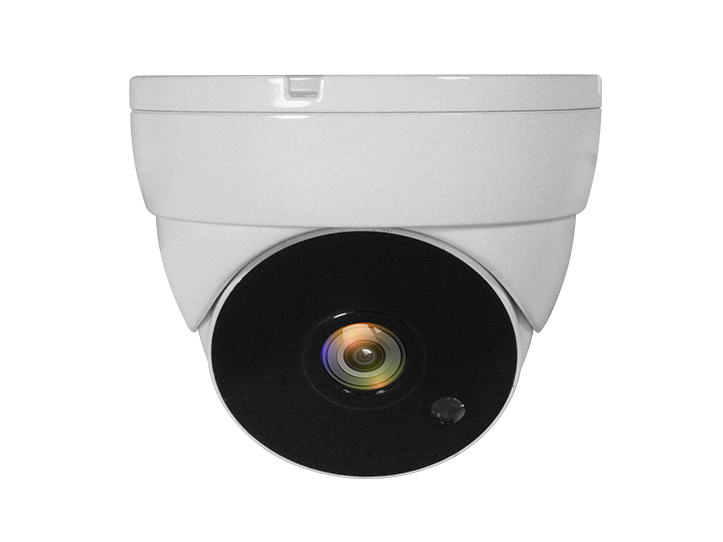

4-in-1 Fixed Dome CCTV Analog Camera, HD 720P
Model ACS-5301EAN 4015867222096
51 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight500 g
- ColourWhite
- Form factorDome
- White balanceATW
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 500 g
- Colour
- White
- Form factor
- Dome
- White balance
- ATW
- Brand
- LevelOne
- Category
- Security Camera
- Model
- ACS-5301
- Part number
- ACS-5301
- EAN / UPC
- 4015867222096
- Also known as
- LevelOne 4-in-1 Fixed Dome CCTV Analog Camera, HD 720P
Specifications
51 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Certification | CE/FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| LED indicators | Power |
| International Protection (IP) code | IP67 |
| Weatherproof | Yes |
| Country of origin | China |
Camera
| Specification | Value |
|---|---|
| White balance | ATW |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Fixed focus | Yes |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 6 |
Video
| Specification | Value |
|---|---|
| Supported video modes | 720p |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 6 W |
| DC output voltage | 12 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 55 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92 mm |
| Depth | 73 mm |
| Height | 73 mm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 120 mm |
| Package depth | 95 mm |
| Package height | 120 mm |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | BNC |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 470 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 610 mm |
| Master (outer) case gross weight | 25.6 kg |
| Products per master (outer) case | 64 pc(s) |
