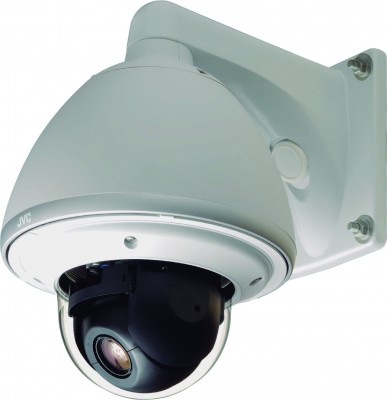

JVC VN-V686WPBU security camera

JVC VN-V686WPBU security camera

640 x 480 pixels

Model VN-V686WPBUEAN 046838036842

29 specifications
  • Weight5.5 kg
  • Minimum illumination0.04 lx
  • Sensor typeCCD
  • Optical zoom36x
  • Maximum resolution640 x 480 pixels
  • Wi-FiNo
See all specifications

Overview

Weight
5.5 kg
Minimum illumination
0.04 lx
Sensor type
CCD
Optical zoom
36x
Maximum resolution
640 x 480 pixels
Wi-Fi
No
Brand
JVC
Model
VN-V686WPBU
Part number
VN-V686WPBU
EAN / UPC
046838036842
Also known as
JVC VN-V686WPBU security camera 640 x 480 pixels

Specifications

29 specifications in 12 groups

Camera

Minimum illumination0.04 lx
Tilt angle range-5 - 185°
Pan range0 - 360°
Camera shutter speed2.1 - 1/10000 s

Image sensor

Sensor typeCCD
Optical sensor size25.4 / 4 mm (1 / 4")

Lens system

Optical zoom36x
Digital zoom32x
Focal length range3.43 - 122 mm

Video

Maximum resolution640 x 480 pixels
Frame rate30 fps

Network

Wi-FiNo
Supported network protocolsTCP/IP, UDP/IP, HTTP, FTP, ICMP, ARP, RTP, DHCP, SNTP, SMTP, DSCP, IGMP, IPv6, VSIP, AMX
Cabling technology10/100Base-T(X)

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

IP address filteringYes
Security algorithmsHTTPS
Video motion detectionYes

Power

Power source typePoE
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-40 - 50 °C

System requirements

Minimum RAM1024 MB
Minimum graphics card memory8 MB
Minimum processorPentium4 2GHz

Weight & dimensions

Weight5.5 kg

Other features

Compatible operating systemsWindows Vista Business (SP1), Windows XP Pro (SP2)/Home (SP2)
Dimensions (WxDxH)260 x 350 x 385 mm
F-number (relative aperture)F1.6 (W) - F4.5 (T)
Power requirements24 VAC (50Hz/60Hz), 2.2A
