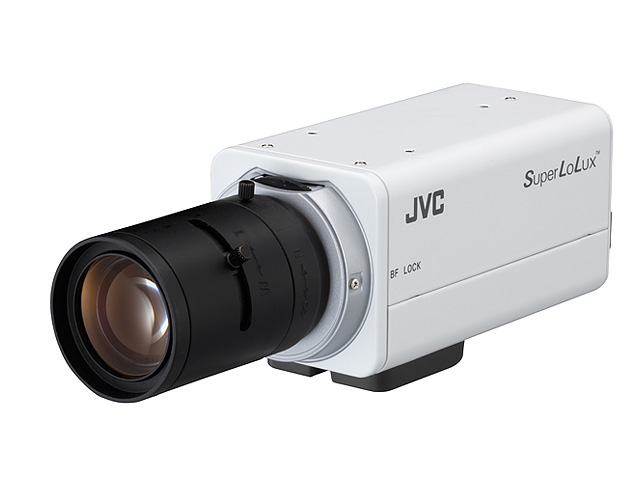

TK-C9510E security camera Box Indoor & outdoor
752 x 582 pixels Ceiling/wall
Model TK-C9510E
33 specifications
- ConnectivityWired
- TypeBox
- Weight310 g
- ColourBlack, White
- Placement supportedIndoor & outdoor
- Minimum illumination0.025 lx
Overview
- Connectivity
- Wired
- Type
- Box
- Weight
- 310 g
- Colour
- Black, White
- Placement supported
- Indoor & outdoor
- Minimum illumination
- 0.025 lx
- Brand
- JVC
- Category
- Security Camera
- Model
- TK-C9510E
- Part number
- TK-C9510E
- Also known as
- JVC TK-C9510E security camera Box Indoor & outdoor 752 x 582 pixels Ceiling/wall
Specifications
33 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Auto-tracking | Yes |
| Day/night mode | Yes |
| Remote viewing | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Box |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.025 lx |
| White balance | ATW, AWC, Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CCD |
| Optical sensor size | 25.4 / 2 mm (1 / 2") |
| Effective sensor resolution | 440000 pixels |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 752 x 582 pixels |
| Noise reduction | Yes |
| Automatic gain control | Yes |
Network
| Specification | Value |
|---|---|
| Supported network protocols | JCCP, Pelco-P, Pelco-D |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-485 ports | 1 |
Security
| Specification | Value |
|---|---|
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Remotely operated | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 24 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 126 mm |
| Height | 61 mm |
| Weight | 310 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
| User guide | Yes |
