KY-PZ100WE security camera Turret IP security camera Indoor
1920 x 1080 pixels Desk
Model KY-PZ100WE
46 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight2 kg
- ColourWhite
- Form factorTurret
- Camera pan controlYes
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 2 kg
- Colour
- White
- Form factor
- Turret
- Camera pan control
- Yes
- Brand
- JVC
- Category
- Security Camera
- Model
- KY-PZ100WE
- Part number
- KY-PZ100WE
- Also known as
- JVC KY-PZ100WE security camera Turret IP security camera Indoor 1920 x 1080 pixels Desk
Specifications
46 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| PTZ control | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Desk |
| Product colour | White |
| LED indicators | Yes |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Tilt angle range | -30 - 90° |
| Tilt speed | 300 °/sec |
| Pan range | -175 - 175° |
| Pan speed | 480 °/sec |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution | 13 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 30x |
| Digital zoom | 12x |
| Focal length range | 4.3 - 129 mm |
| Auto focus | Yes |
| Maximum aperture number | 4.7 |
| Minimum aperture number | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 13 MP |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 48 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSDHC, MicroSDXC |

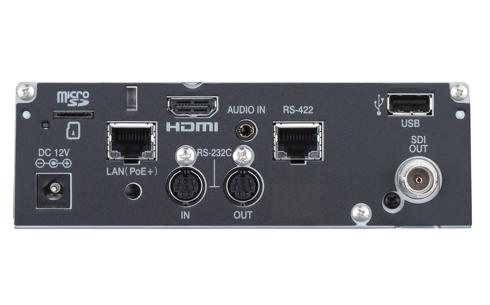

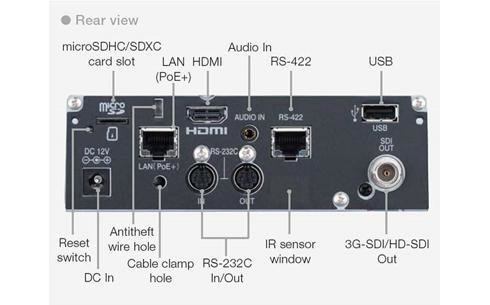

Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| HDMI ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 30 - 80% |
| Storage relative humidity (H-H) | 30 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 154 mm |
| Depth | 191 mm |
| Height | 200.7 mm |
| Weight | 2 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
