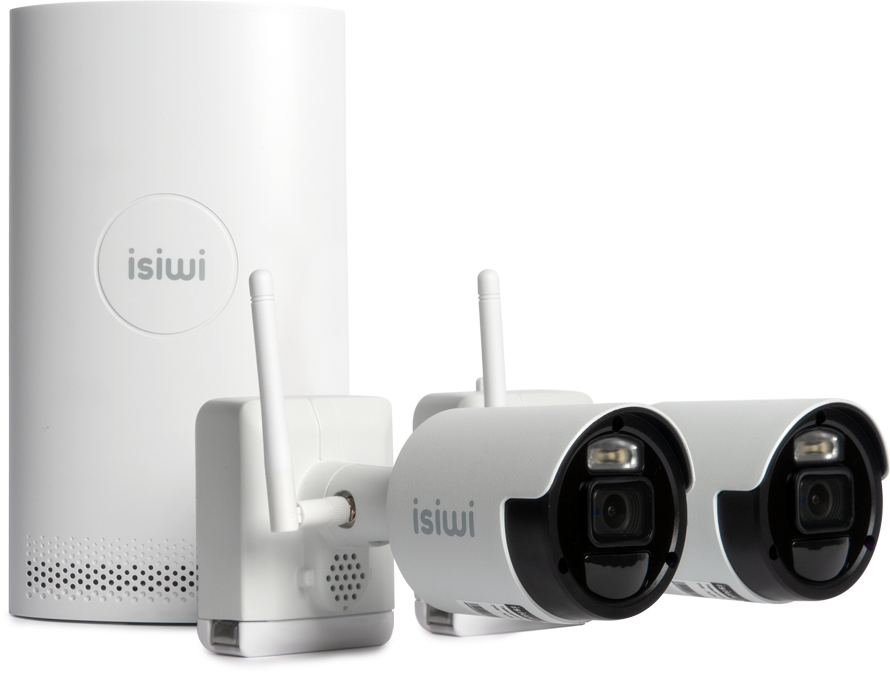

Connect Air 2
Model Connect Air 2Part no. 9020-000005
41 specifications
- Storage8 TB
- ConnectivityWireless
- TypeIP security camera
- ColourWhite
- Form factorSpherical
- Field of view (FOV) angle156°
Overview
- Storage
- 8 TB
- Connectivity
- Wireless
- Type
- IP security camera
- Colour
- White
- Form factor
- Spherical
- Field of view (FOV) angle
- 156°
- Brand
- Isiwi
- Category
- Security Camera
- Model
- Connect Air 2
- Part number
- 9020-000005
- Also known as
- Isiwi Connect Air 2 Spherical IP security camera Indoor & outdoor Ceiling/wall
Specifications
41 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wireless |
| Maximum operating distance | 300 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Remote viewing | Yes |
| Built-in light | Yes |
| Antenna type | External |
| Antennas quantity | 1 |
| Plug and Play | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Ceiling/wall |
| Product colour | White |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Field of view (FOV) angle | 156° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
Lens system
| Specification | Value |
|---|---|
| Lens diameter | 2.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 15 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.265 |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Digital Wide Dynamic Range (DWDR) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 8 TB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Maximum memory card size | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
Management features
| Specification | Value |
|---|---|
| Remotely operated | Yes |
| Smartphone/tablet remote support | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | Battery, DC |
| DC output voltage | 5, 12 |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 2 |
| Mounting brackets included | Yes |
| Battery included | Yes |
| Manual | Yes |
