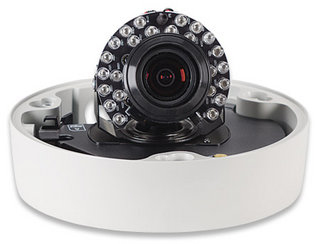

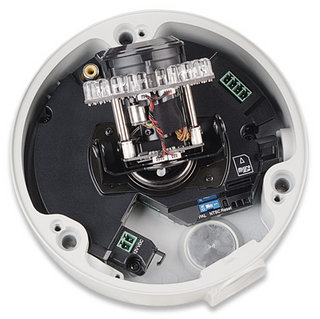

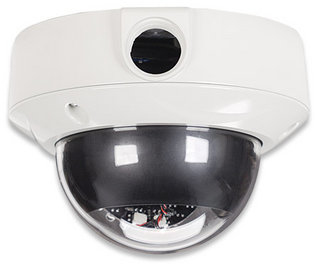

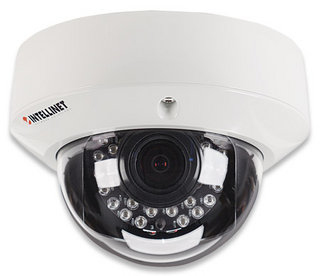

Intellinet NFD130-IRV Dome IP security camera Outdoor

1280 x 1024 pixels Ceiling

Model NFD130-IRVPart no. 551236EAN 766623551236

75 specifications

ProcessorARM9
Memory128 MB
ConnectivityWired
TypeIP security camera
Weight1.1 kg
ColourWhite

See all specifications

Overview

Processor: ARM9
Memory: 128 MB
Connectivity: Wired
Type: IP security camera
Weight: 1.1 kg
Colour: White

Brand: Intellinet
Category: Security Camera
Model: NFD130-IRV
Part number: 551236
EAN / UPC: 766623551236
Also known as: Intellinet NFD130-IRV Dome IP security camera Outdoor 1280 x 1024 pixels Ceiling

Specifications

75 specifications in 20 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	No
Day/night mode	Yes
Processor model	ARM9
Certification	FCC-B, RoHS, CE

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling
Product colour	White
LED indicators	Yes

Camera

Specification	Value
Field of view (FOV) angle	96.5°
Lens viewing angle, horizontal	75°
Lens viewing angle, vertical	60.1°
Camera shutter speed	1 - 1/17780 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 4 mm (1 / 4")
Progressive scan	Yes

Lens system

Specification	Value
Focal length range	2.7 - 9 mm
Fixed focal length	1.2 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	20 m
LED type	IR
Number of illumination LEDs	24
Infra-red wavelength	850 nm

Video

Specification	Value
Maximum resolution	1280 x 1024 pixels
Total megapixels	1.3 MP
Video formats supported	3GP, H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 640 x 480 (VGA)
Supported video modes	720p

Audio

Specification	Value
Signal-to-Noise Ratio (SNR)	44 dB
Built-in microphone	No

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP / ISMA / RTSP, Bonjour
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Flash memory	8 MB
Internal memory	128 MB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Microphone in	No
USB port	No
DC-in jack	Yes
Interface	RJ-45

Security

Specification	Value
Password protection type	Yes
IP address filtering	Yes
Security algorithms	HTTPS

Management features

Specification	Value
Reset button	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (typical)	5.5 W
DC output voltage	+12V
DC output current	1 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 90%

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Wi
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Minimum RAM	2048 MB
Minimum graphics card memory	256 MB
Minimum processor	Pentium 4 2.8 GHz

Weight & dimensions

Specification	Value
Height	100 mm
Diameter	14.5 cm
Weight	1.1 kg

Sustainability

Specification	Value
Compliance certificates	RoHS

Packaging content

Specification	Value
Cables included	AC
Manual	Yes
User guide	Yes

Other features

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af
Networking features	Fast Ethernet
Number of simultaneous users	10 user(s)
Power LED	Yes
I/O ports	1 x RCA 1 x alarm in 1 x alarm out
