Intellinet NFD130-IR Dome IP security camera Outdoor

1280 x 1024 pixels Ceiling

Model NFD130-IRPart no. 551229EAN 069060212327

62 specifications

ProcessorARM9
Memory128 MB
ConnectivityWired
TypeIP security camera
ColourWhite
Form factorDome

See all specifications

Overview

Processor: ARM9
Memory: 128 MB
Connectivity: Wired
Type: IP security camera
Colour: White
Form factor: Dome

Brand: Intellinet
Category: Security Camera
Model: NFD130-IR
Part number: 551229
EAN / UPC: 069060212327, 617407423945, 766623551229, 7666235512294
Also known as: Intellinet NFD130-IR Dome IP security camera Outdoor 1280 x 1024 pixels Ceiling

Specifications

62 specifications in 19 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	No
Day/night mode	Yes
Processor model	ARM9

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling
Product colour	White

Camera

Specification	Value
Field of view (FOV) angle	96.5°
Lens viewing angle, horizontal	75°
Lens viewing angle, vertical	60.1°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 4 mm (1 / 4")
Progressive scan	Yes

Lens system

Specification	Value
Focal length range	2.7 - 9 mm
Fixed focal length	1.2 mm

Night vision

Specification	Value
Night vision	Yes

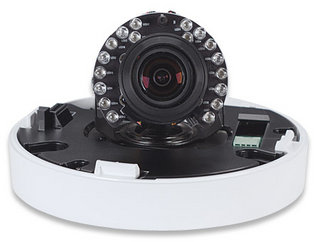

Number of illumination LEDs	18
Infra-red wavelength	850 nm

Video

Specification	Value
Maximum resolution	1280 x 1024 pixels
Total megapixels	1.3 MP
Video formats supported	3GP, H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 640 x 480 (VGA)
Supported video modes	720p

Audio

Specification	Value
Signal-to-Noise Ratio (SNR)	44 dB
Built-in microphone	No

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Flash memory	8 MB
Internal memory	128 MB

Ports & interfaces

Specification	Value

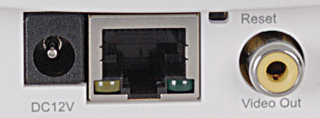

Ethernet LAN (RJ-45) ports	1
Microphone in	No
USB port	No
DC-in jack	Yes
Interface	RJ-45

Security

Specification	Value
Password protection type	Yes
IP address filtering	Yes
Security algorithms	HTTPS

Management features

Specification	Value
Reset button	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (typical)	5.5 W
DC output voltage	+12V
DC output current	1 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 90%

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Wi
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Minimum RAM	2048 MB
Minimum graphics card memory	256 MB

Sustainability

Specification	Value
Compliance certificates	RoHS

Packaging content

Specification	Value
Cables included	AC
Manual	Yes
User guide	Yes

Other features

Specification	Value
Number of simultaneous users	10 user(s)
Power LED	Yes
