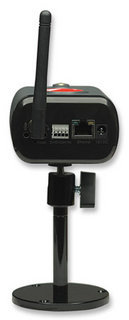

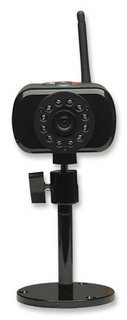

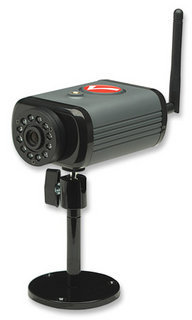

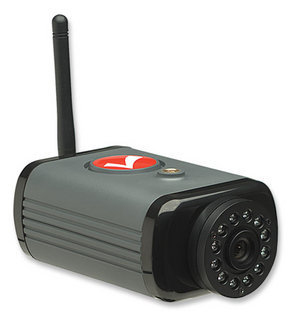

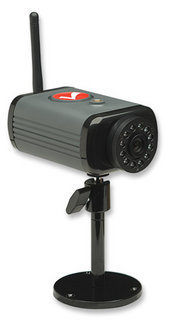

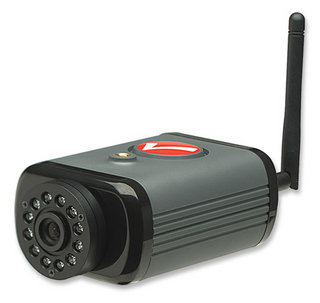

Intellinet NFC30-IRWG Box Indoor & outdoor

Intellinet NFC30-IRWG Box Indoor & outdoor

640 x 480 pixels

Model NFC30-IRWGPart no. 550970EAN 766623550970

50 specifications
  • ProcessorARM9
  • Memory64 MB
  • ConnectivityWired & Wireless
  • TypeBox
  • Weight900 g
  • ColourGrey
See all specifications

Overview

Processor
ARM9
Memory
64 MB
Connectivity
Wired & Wireless
Type
Box
Weight
900 g
Colour
Grey
Brand
Intellinet
Model
NFC30-IRWG
Part number
550970
EAN / UPC
766623550970, 7666235509706
Also known as
Intellinet NFC30-IRWG Box Indoor & outdoor 640 x 480 pixels

Specifications

50 specifications in 17 groups

Performance

Placement supportedIndoor & outdoor
Connectivity technologyWired & Wireless
Processor modelARM9
CertificationFCC, RoHS, CE

Design

Form factorBox
Product colourGrey

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal46°
Lens viewing angle, vertical46°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")
Progressive scanYes

Lens system

Focal length range0 - 4.3 mm

Night vision

Night visionYes
Night vision distance10 m
LED typeIR
Number of illumination LEDs12
Infra-red wavelength850 nm

Video

Maximum resolution640 x 480 pixels
Video formats supportedM-JPEG, MPEG4
Frame rate30 fps

Audio

Sample rate8000 kHz
Signal-to-Noise Ratio (SNR)50 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiYes
Supported network protocolsTCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP/ISMA/RTSP
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Flash memory8 MB
Internal memory64 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
DC-in jackYes

Security

Security algorithms128-bit WEP, 64-bit WEP, WEP, WPA, WPA-AES, WPA-TKIP, WPA2-PSK
Video motion detectionYes

Power

Power consumption (typical)5 W
DC output current1 A
Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)0 - 60 °C
Operating relative humidity (H-H)20 - 80%

System requirements

Minimum processorPentium 4 1.8GHz

Weight & dimensions

Weight900 g

Other features

Audio outputYes
Compatible operating systemsWindows 2000, XP, Vista, 7 Linux Mac OS X
Compliance industry standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Data transfer rate100 Mbit/s
Dimensions (WxDxH)71 x 128 x 42 mm
Power LEDYes
