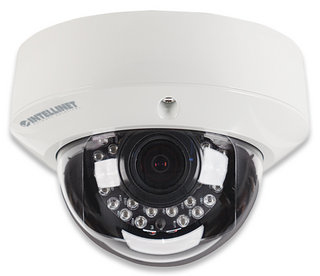

Intellinet IDC-767IR Dome IP security camera Outdoor

Intellinet IDC-767IR Dome IP security camera Outdoor

1920 x 1080 pixels Ceiling

Model IDC-767IRPart no. 551410EAN 766623551410

57 specifications
  • ProcessorARM9
  • Memory128 MB
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight1.5 kg
  • ColourWhite
See all specifications

Overview

Processor
ARM9
Memory
128 MB
Connectivity
Wired & Wireless
Type
IP security camera
Weight
1.5 kg
Colour
White
Brand
Intellinet
Model
IDC-767IR
Part number
551410
EAN / UPC
766623551410, 5054337324150, 7666235514106
Also known as
Intellinet IDC-767IR Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling

Specifications

57 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired & Wireless
Day/night modeYes
Processor modelARM9
CertificationFCC Class B, RoHS, CE

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialAluminium

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal64°
Camera shutter speed1/2 - 1/10000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")

Lens system

Focal length range3.3 - 12 mm

Night vision

Night visionYes
Night vision distance20 m
LED typeIR
Number of illumination LEDs24
Infra-red wavelength850 nm

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supported3GP, H.264, MPEG4
Supported graphics resolutions160 x 120, 320 x 240, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Supported video modes1080p, 720p
Frame rate30 fps

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP / ISMA / RTSP, Bonjour, ONVIF 1.02
Wi-Fi standardsNot supported
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), SDHC
Flash memory16 MB
Internal memory128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Power

Power source typePoE
AC input voltage12 V
Power consumption (typical)6 W
DC output current1 A
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)20 - 90%

System requirements

Minimum RAM1024 MB
Minimum graphics card memory256 MB
Minimum processor2.8 GHz

Weight & dimensions

Width144 mm
Height115 mm
Weight1.5 kg

Sustainability

Compliance certificatesRoHS

Packaging content

Mounting brackets includedYes
ManualYes
User guideYes

Other features

Power LEDYes
