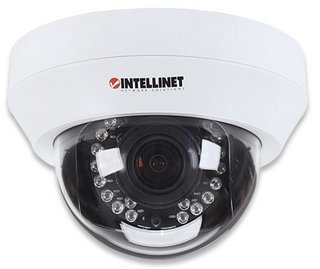

Intellinet IDC-752IR Dome IP security camera

1280 x 720 pixels

Model IDC-752IRPart no. 551380EAN 766623551380

69 specifications

ProcessorARM9
Memory128 MB
ConnectivityWired
TypeIP security camera
Weight1.1 kg
ColourWhite

See all specifications

Overview

Processor: ARM9
Memory: 128 MB
Connectivity: Wired
Type: IP security camera
Weight: 1.1 kg
Colour: White

Brand: Intellinet
Category: Security Camera
Model: IDC-752IR
Part number: 551380
EAN / UPC: 766623551380, 984329720590, 5054140981038, 7666235513802
Also known as: Intellinet IDC-752IR Dome IP security camera 1280 x 720 pixels

Specifications

69 specifications in 20 groups

Performance

Specification	Value
Type	IP security camera
Connectivity technology	Wired
PTZ control	No
Wide Dynamic Range (WDR)	Yes
Alarm input/output	Yes
Processor model	ARM9
Certification	FCC Class B, CE

Design

Specification	Value
Form factor	Dome
Product colour	White
LED indicators	Yes

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	81°
Lens viewing angle, vertical	60.1°
Camera shutter speed	0.0001 - 0.5 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 4 mm (1 / 4")
Progressive scan	Yes

Lens system

Specification	Value
Digital zoom	10x
Focal length range	2.7 - 9 mm
Focus adjustment	1.2

Night vision

Specification	Value
Night vision	Yes
Night vision distance	15 m
LED type	IR
Number of illumination LEDs	18
Infra-red wavelength	850 nm

Video

Specification	Value
Maximum resolution	1280 x 720 pixels
Total megapixels	1 MP
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	160 x 120, 320 x 240, 1280 x 720 (HD 720), 640 x 480 (VGA)
Supported video modes	720p
Frame rate	30 fps

Audio

Specification	Value
Audio formats supported	3GPP
Signal-to-Noise Ratio (SNR)	39 dB

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP / ISMA / RTSP, Bonjour, ONVIF 1.02
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Flash memory	16 MB
Internal memory	128 MB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Interface	RJ-45

Security

Specification	Value
HTTPS encryption	Yes
IP address filtering	Yes

Management features

Specification	Value
Reset button	Yes

Power

Specification	Value
Power source type	PoE
DC output voltage	+12V
DC output current	1 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 90%

System requirements

Specification	Value
Windows operating systems supported	Yes
Minimum RAM	1024 MB
Minimum graphics card memory	256 MB
Minimum processor	Pentium 4 2.8 GHz

Weight & dimensions

Specification	Value
Width	145 mm
Depth	145 mm
Height	100 mm
Weight	1.1 kg

Sustainability

Specification	Value
Compliance certificates	RoHS

Packaging content

Specification	Value
Mounting kit	Yes
Manual	Yes
AC adapter included	Yes
Quick start guide	Yes

Other features

Specification	Value
Compliance industry standards	802.3af PoE
Number of simultaneous users	10 user(s)
