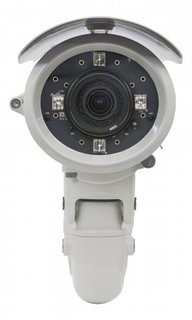

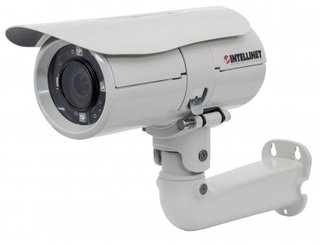

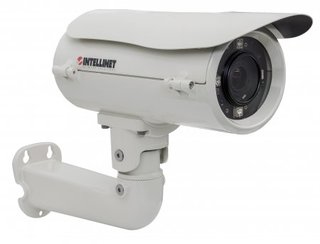

Intellinet IBC-667IR Bullet IP security camera Outdoor

1920 x 1080 pixels

Model IBC-667IRPart no. 551069EAN 766623551069

67 specifications

ProcessorARM9
Memory64 MB
ConnectivityWired
TypeIP security camera
Weight2.88 kg
ColourWhite

See all specifications

Overview

Processor: ARM9
Memory: 64 MB
Connectivity: Wired
Type: IP security camera
Weight: 2.88 kg
Colour: White

Brand: Intellinet
Category: Security Camera
Model: IBC-667IR
Part number: 551069
EAN / UPC: 766623551069, 803982925091, 7666235510696
Also known as: Intellinet IBC-667IR Bullet IP security camera Outdoor 1920 x 1080 pixels

Specifications

67 specifications in 19 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	No
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Processor model	ARM9
Certification	FCC Class A, CE

Design

Specification	Value
Form factor	Bullet
Product colour	White
LED indicators	Yes
Housing material	Aluminium
International Protection (IP) code	IP66

Camera

Specification	Value
Minimum illumination	0 lx

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")

Lens system

Specification	Value
Digital zoom	10x
Focal length range	3 - 9 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	35 m
LED type	IR
Number of illumination LEDs	4
Infra-red wavelength	850 nm

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video formats supported	H.264, M-JPEG, MPEG4
Video compression formats	3GPP, H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Supported video modes	1080p
Frame rate	30 fps
Full HD	Yes

Audio

Specification	Value
Audio system full duplex	Yes
Signal-to-Noise Ratio (SNR)	39 dB

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP/ISMA RTSP, Bonjour, ONVIF 2.2
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Flash memory	8 MB
Internal memory	64 MB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Interface	RJ-45

Security

Specification	Value
Password protection type	Supervisor, User
Security algorithms	HTTPS, SSL/TLS
Video motion detection	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (max)	9.6 W
DC output voltage	+12V
DC output current	1.5 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	20 - 80%

System requirements

Specification	Value
Windows operating systems supported	Yes
Minimum RAM	1024 MB
Minimum processor	Pentium 4 2.8 GHz

Weight & dimensions

Specification	Value
Depth	250 mm
Height	125 mm
Length	360 mm
Weight	2.88 kg

Sustainability

Specification	Value
Compliance certificates	RoHS

Packaging content

Specification	Value
Manual	Yes
AC adapter included	Yes

Other features

Specification	Value
Compliance industry standards	IEEE 802.3af
F-number (relative aperture)	1.2
