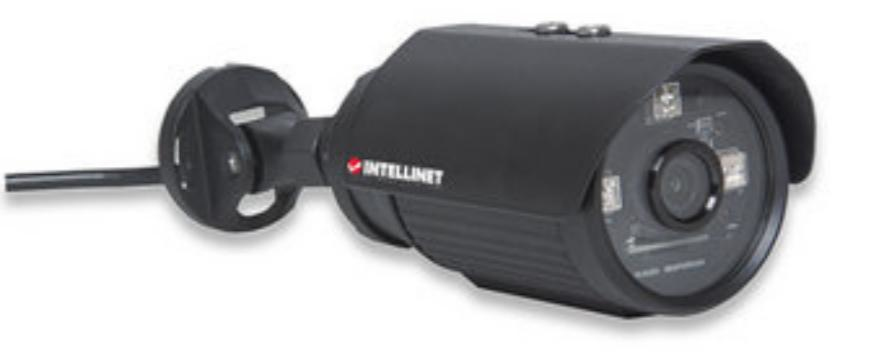

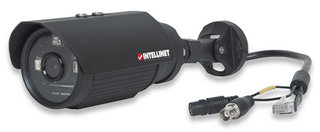

IBC-637IR Bullet IP security camera Outdoor
1280 x 800 pixels Ceiling/wall
Model IBC-637IRPart no. 551366EAN 7666235513666
57 specifications
- ProcessorARM9
- Memory64 MB
- ConnectivityWired
- TypeIP security camera
- Weight1.3 kg
- ColourBlack
Overview
- Processor
- ARM9
- Memory
- 64 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 1.3 kg
- Colour
- Black
- Brand
- Intellinet
- Category
- Security Camera
- Model
- IBC-637IR
- Part number
- 551366
- EAN / UPC
- 7666235513666, 172304305485, 617407423952, 766623551366 +4 more
- Also known as
- Intellinet IBC-637IR Bullet IP security camera Outdoor 1280 x 800 pixels Ceiling/wall
Specifications
57 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Processor model | ARM9 |
| Certification | FCC Class B, RoHS, CE |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | Black |
| Housing material | Aluminium |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 53° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Fixed focal length | 4 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 15 m |
| LED type | IR |
| Number of illumination LEDs | 3 |
| Infra-red wavelength | 850 nm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1280 x 800 pixels |
| Total megapixels | 1 MP |
| Video formats supported | 3GP, H.264, MPEG4 |
| Supported graphics resolutions | 320 x 240, 1280 x 720 (HD 720), 1280 x 800 (WXGA), 640 x 480 (VGA) |
| Supported video modes | 720p |
| Frame rate | 30 fps |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP/ISMA RTSP, Bonjour, ONVIF 2.2 |
| Wi-Fi standards | Not supported |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SDHC |
| Flash memory | 8 MB |
| Internal memory | 64 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| AC input voltage | 12 V |
| Power consumption (typical) | 7 W |
| DC output current | 1 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Minimum RAM | 1024 MB |
| Minimum graphics card memory | 256 MB |
| Minimum processor | 2.8 GHz |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 270 mm |
| Weight | 1.3 kg |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Manual | Yes |
| User guide | Yes |
Other features
| Specification | Value |
|---|---|
| Power LED | Yes |
