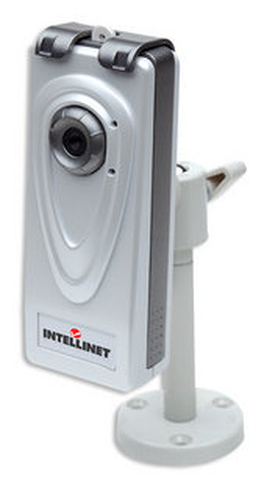

Intellinet Fixed Cameras

Intellinet Fixed Cameras

Model Fixed CamerasPart no. 503181

48 specifications
  • Memory32 MB
  • ConnectivityWired
  • TypeBox
  • Weight1.1 kg
  • ColourGrey
  • Placement supportedOutdoor
See all specifications

Overview

Memory
32 MB
Connectivity
Wired
Type
Box
Weight
1.1 kg
Colour
Grey
Placement supported
Outdoor
Brand
Intellinet
Model
Fixed Cameras
Part number
503181
Also known as
Intellinet Fixed Cameras Box Outdoor 720 x 480 pixels Wall

Specifications

48 specifications in 15 groups

Performance

Placement supportedOutdoor
Connectivity technologyWired
PTZ controlNo
CertificationFCC, RF, EN

Design

Form factorBox
Mounting typeWall
Product colourGrey
LED indicatorsPower, Yes

Camera

Minimum illumination0.1 lx
White balanceAuto
Camera shutter speed1/60 - 1/10000 s

Image sensor

Sensor typeCCD
Optical sensor size25.4 / 3 mm (1 / 3")

Lens system

Focal length range0 - 6 mm

Video

Maximum resolution720 x 480 pixels
Supported graphics resolutions720 x 480

Audio

Frequency range0 - 300 Hz
Sample rate3.4 kHz
Signal-to-Noise Ratio (SNR)48 dB

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, UDP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, RTSP, RTC
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Flash memory8 MB
Internal memory32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
Headphone outputs1
DC-in jackYes
InterfaceRJ-45

Power

Power source typePoE
Power consumption (typical)3 W
DC output voltage+12V
DC output current1.5 A
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)0 - 60 °C
Operating relative humidity (H-H)10 - 95%

Weight & dimensions

Width87 mm
Depth158 mm
Height45 mm
Weight1.1 kg

Packaging content

ManualYes

Other features

Compatible operating systemsWindows 2000 Windows XP Windows Vista Windows Linux Mac OS X
Compliance industry standards802.3, 802.3u, 802.3af
Data transfer rate100 Mbit/s
Power LEDYes
