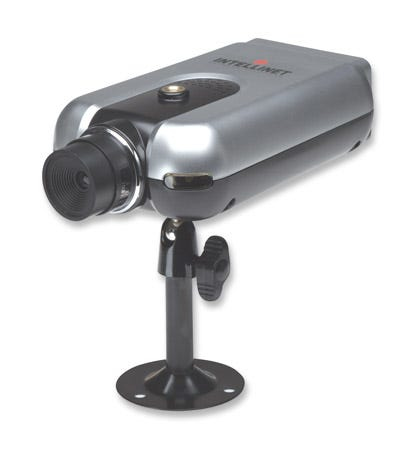

550796 security camera IP security camera
720 x 576 pixels
Model 550796EAN 766623550796
56 specifications
- ProcessorARM9
- ConnectivityWired
- TypeIP security camera
- Weight1.1 kg
- ColourBlack, Silver
- Minimum illumination0.1 lx
Overview
- Processor
- ARM9
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 1.1 kg
- Colour
- Black, Silver
- Minimum illumination
- 0.1 lx
- Brand
- Intellinet
- Category
- Security Camera
- Model
- 550796
- Part number
- 550796
- EAN / UPC
- 766623550796
- Also known as
- Intellinet 550796 security camera IP security camera 720 x 576 pixels
Specifications
56 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Processor model | ARM9 |
| Certification | FCC Class B, RF: EN300328, EMC: EN301489-1/-7, Safety: EN60950-1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| LED indicators | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.1 lx |
| Lens viewing angle, diagonal | 54° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/50 - 1/10000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | Super HAD CCD |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.8 |
| Closest focusing distance | 0.1 m |
| Fixed focal length | 6 mm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 720 x 576 pixels |
| Video formats supported | M-JPEG, MPEG4 |
| Supported graphics resolutions | 352 x 288, 720 x 576 |
| Frame rate | 25 fps |
| Video streaming | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Image quality adjustment | Brightness, Contrast, Saturation |
Audio
| Specification | Value |
|---|---|
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Sample rate | 3.4 kHz |
| Signal-to-Noise Ratio (SNR) | 48 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Supported network protocols | TCP/IP, UDP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3, RTSP, RTC |
| Number of users | 50 user(s) |
Storage
| Specification | Value |
|---|---|
| Flash memory | 8 MB |
| ROM capacity | 32 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Composite video out | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Terminal block port | Yes |
Security
| Specification | Value |
|---|---|
| Alert notification type | |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 10 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows Vista, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 87 mm |
| Depth | 158 mm |
| Height | 45 mm |
| Weight | 1.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
