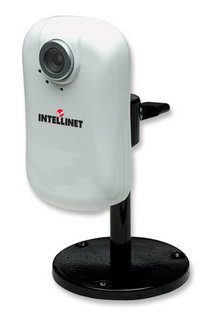

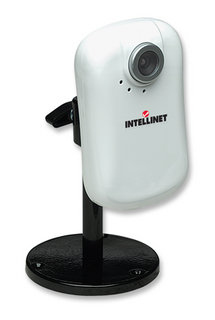

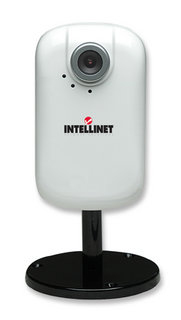

Intellinet 524421 security camera

Intellinet 524421 security camera

640 x 480 pixels

Model 524421EAN 766623524421

36 specifications
  • Weight600 g
  • CertificationFCC, RoHS
  • Minimum illumination0.5 lx
  • Sensor typeCMOS
  • Focal length range4 - 200 mm
  • Maximum resolution640 x 480 pixels
See all specifications

Overview

Weight
600 g
Certification
FCC, RoHS
Minimum illumination
0.5 lx
Sensor type
CMOS
Focal length range
4 - 200 mm
Maximum resolution
640 x 480 pixels
Brand
Intellinet
Model
524421
Part number
524421
EAN / UPC
766623524421
Also known as
Intellinet 524421 security camera 640 x 480 pixels

Specifications

36 specifications in 15 groups

Performance

CertificationFCC, RoHS

Camera

Minimum illumination0.5 lx
Lens viewing angle, horizontal59°
Lens viewing angle, vertical59°
White balanceAuto

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")

Lens system

Focal length range4 - 200 mm

Video

Maximum resolution640 x 480 pixels
Video formats supportedMPEG4
Frame rate30 fps

Audio

Sample rate8 kHz
Signal-to-Noise Ratio (SNR)50 dB
Built-in microphoneYes

Network

Wi-FiNo
Supported network protocolsTCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP/ISMA RTSP

Storage

Flash memory8 MB

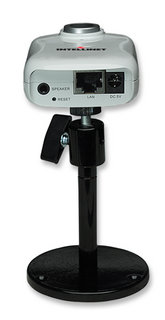

Ports & interfaces

Microphone inYes
DC-in jackYes

Security

Video motion detectionYes

Power

Power source typePoE
Power consumption (typical)3.5 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)20 - 80%

System requirements

Minimum RAM64 MB

Weight & dimensions

Weight600 g

Other features

Compatible operating systemsWindows 2000/XP/Vista/7 Linux Mac OS X
Compliance industry standardsIEEE 802.3, IEEE 802.3u
Data transfer rate10 Mbit/s
Dimensions (WxDxH)98 x 58 x 31 mm
F-number (relative aperture)2
Networking featuresFast Ethernet
Power requirements5V, 1.2A
I/O ports1x RJ-45
Resolution description640 x 480, 320 x 240
