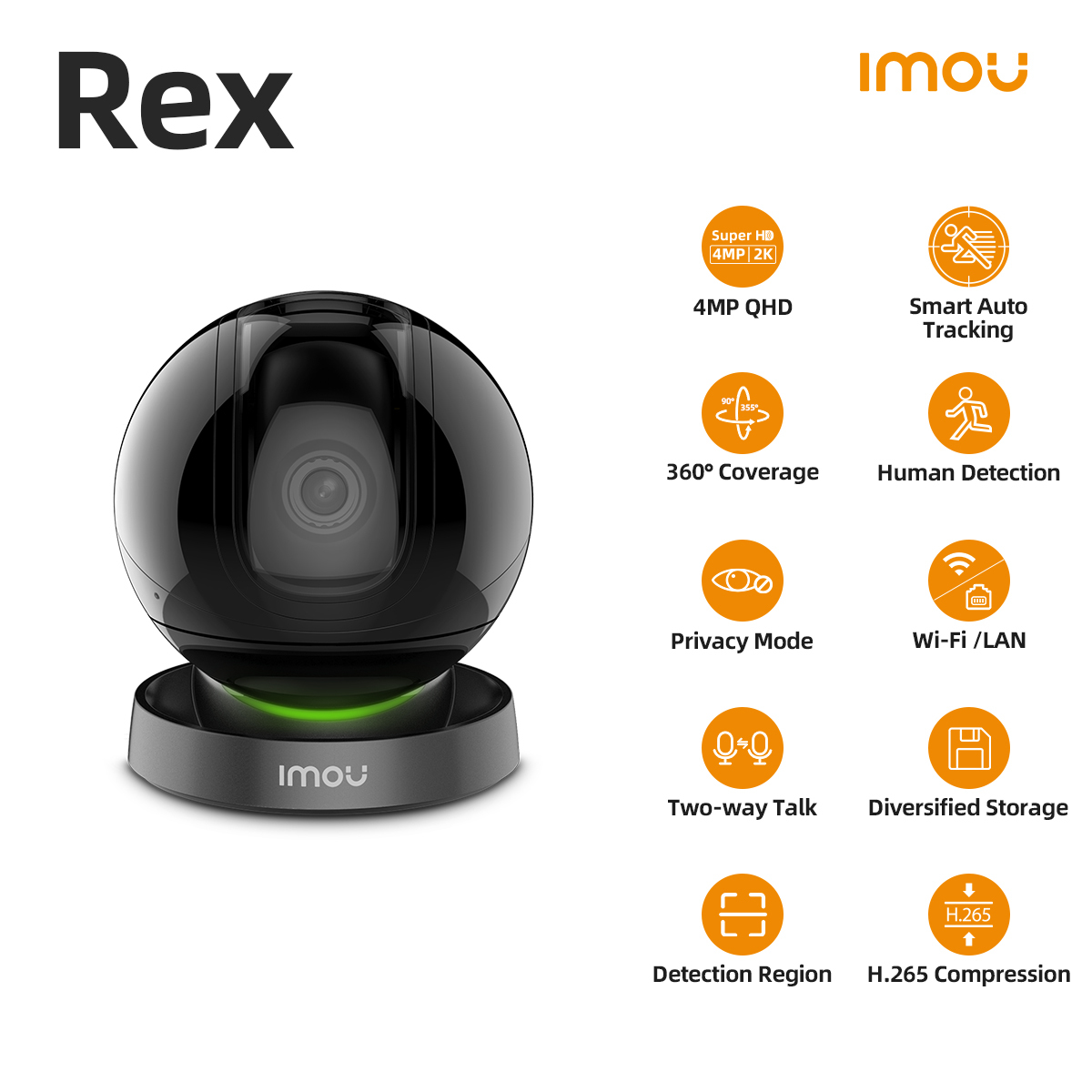

Rex 4MP
Model Rex 4MPPart no. IPC-A46LP-IMOUEAN 6923169701844
69 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight275 g
- ColourBlack
- Form factorSpherical
- Camera pan controlYes
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 275 g
- Colour
- Black
- Form factor
- Spherical
- Camera pan control
- Yes
- Brand
- Imou
- Category
- Security Camera
- Model
- Rex 4MP
- Part number
- IPC-A46LP-IMOU
- EAN / UPC
- 6923169701844
- Also known as
- Imou Rex 4MP
Specifications
69 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| Maximum operating distance | 50 m |
| Built-in light | Yes |
| Certification | CE, FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Ceiling/wall |
| Product colour | Black |
| LED indicators | Yes |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 92° |
| Lens viewing angle, vertical | 48° |
| Lens viewing angle, diagonal | 109° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 355° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 16x |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.265 |
| Frame rate | 30 fps |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
| Audio detection | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | ONVIF |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Frequency band | 2.4 GHz |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Built-in siren | Yes |
| Alert notification type | Text alert message |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power consumption (typical) | 5.5 W |
| DC output voltage | 5 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 107.4 mm |
| Diameter | 9 cm |
| Weight | 275 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | USB |
| Mounting kit | Yes |
| Screws included | Yes |
| Manual | Yes |
| AC adapter included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
