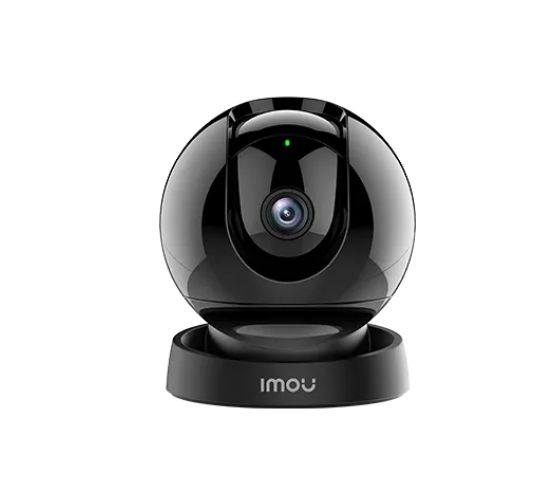

Rex 2D
Model Rex 2DPart no. DHT0150034
52 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight206 g
- ColourBlack
- Form factorSpherical
- Lens viewing angle, horizontal83°
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 206 g
- Colour
- Black
- Form factor
- Spherical
- Lens viewing angle, horizontal
- 83°
- Brand
- Imou
- Category
- Security Camera
- Model
- Rex 2D
- Part number
- DHT0150034
- Also known as
- Imou Rex 2D Spherical IP security camera Indoor 2304 x 1296 pixels Desk
Specifications
52 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| Day/night mode | Yes |
| Certification | CE |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Desk |
| Product colour | Black |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 83° |
| Lens viewing angle, vertical | 46° |
| Lens viewing angle, diagonal | 102° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 355° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Lens diameter | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2304 x 1296 pixels |
| Total megapixels | 3 MP |
| Video compression formats | H.264, H.265 |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 3.4 W |
| DC output voltage | 5 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 90 mm |
| Height | 104 mm |
| Weight | 206 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | USB |
| Mounting kit | Yes |
| Screws included | Yes |
| Manual | Yes |
