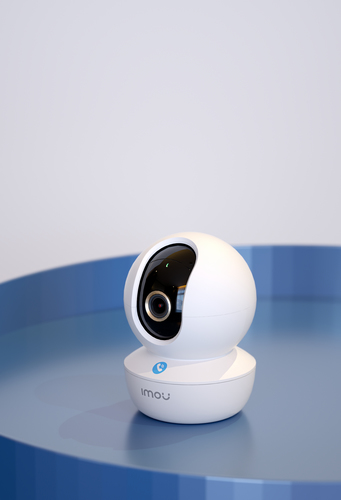

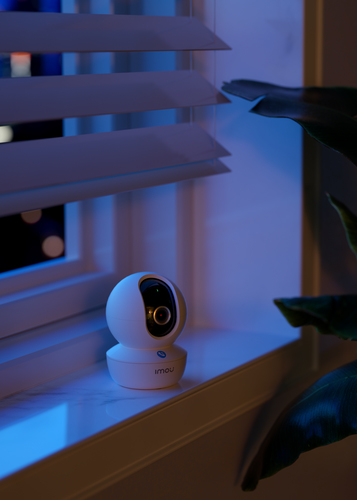

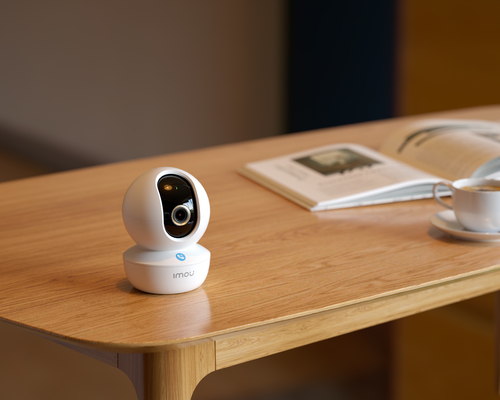

Ranger RC 3K
Model Ranger RC 3KPart no. IPC-GK2CP-5C0WR-IMOUEAN 6971927234974
62 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight171 g
- ColourWhite
- Form factorSpherical
- Lens viewing angle, horizontal77°
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 171 g
- Colour
- White
- Form factor
- Spherical
- Lens viewing angle, horizontal
- 77°
- Brand
- Imou
- Category
- Security Camera
- Model
- Ranger RC 3K
- Part number
- IPC-GK2CP-5C0WR-IMOU
- EAN / UPC
- 6971927234974
- Also known as
- Imou Ranger RC 3K
Specifications
62 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wireless |
| Auto-tracking | Yes |
| Maximum operating distance | 50 m |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Desk |
| Product colour | White |
| LED indicators | Yes |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 77° |
| Lens viewing angle, vertical | 40° |
| Lens viewing angle, diagonal | 91° |
| Tilt angle range | -10 - 70° |
| Pan range | 0 - 355° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Lens diameter | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2688 x 1620 pixels |
| Total megapixels | 5 MP |
| Video compression formats | H.264, H.265 |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | No |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Built-in siren | Yes |
| Alert notification type | Text alert message |
| Configurable region | Yes |
| Intelligent Video Surveillance (IVS) system features | Abnormal sound detection, Human detection |
| Privacy protection | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power consumption (max) | 5 W |
| DC output voltage | 5 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 110.4 mm |
| Diameter | 8 cm |
| Weight | 171 g |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Sustainability compliance | Yes |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | USB |
| Screws included | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Mounting template | Yes |
