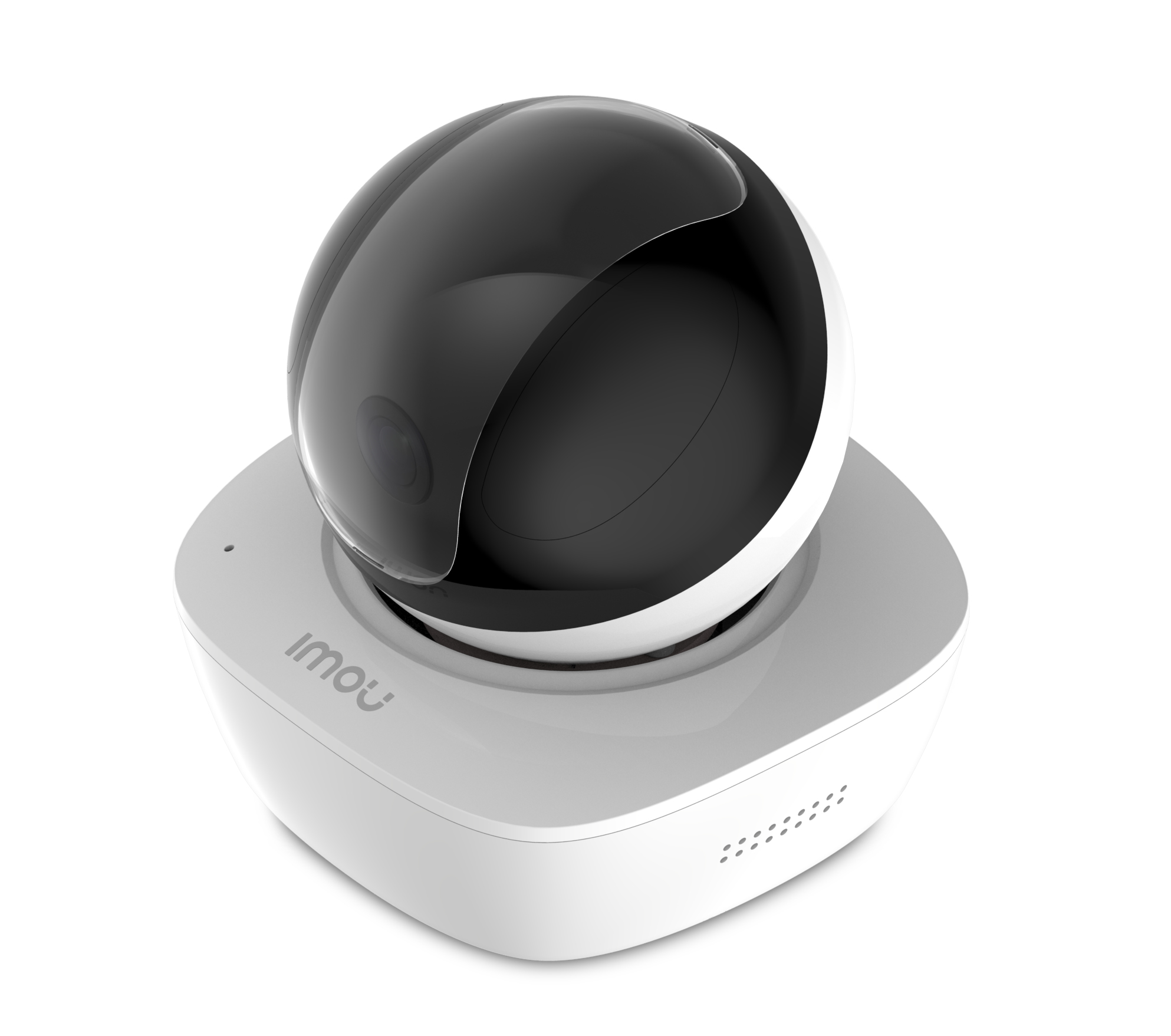

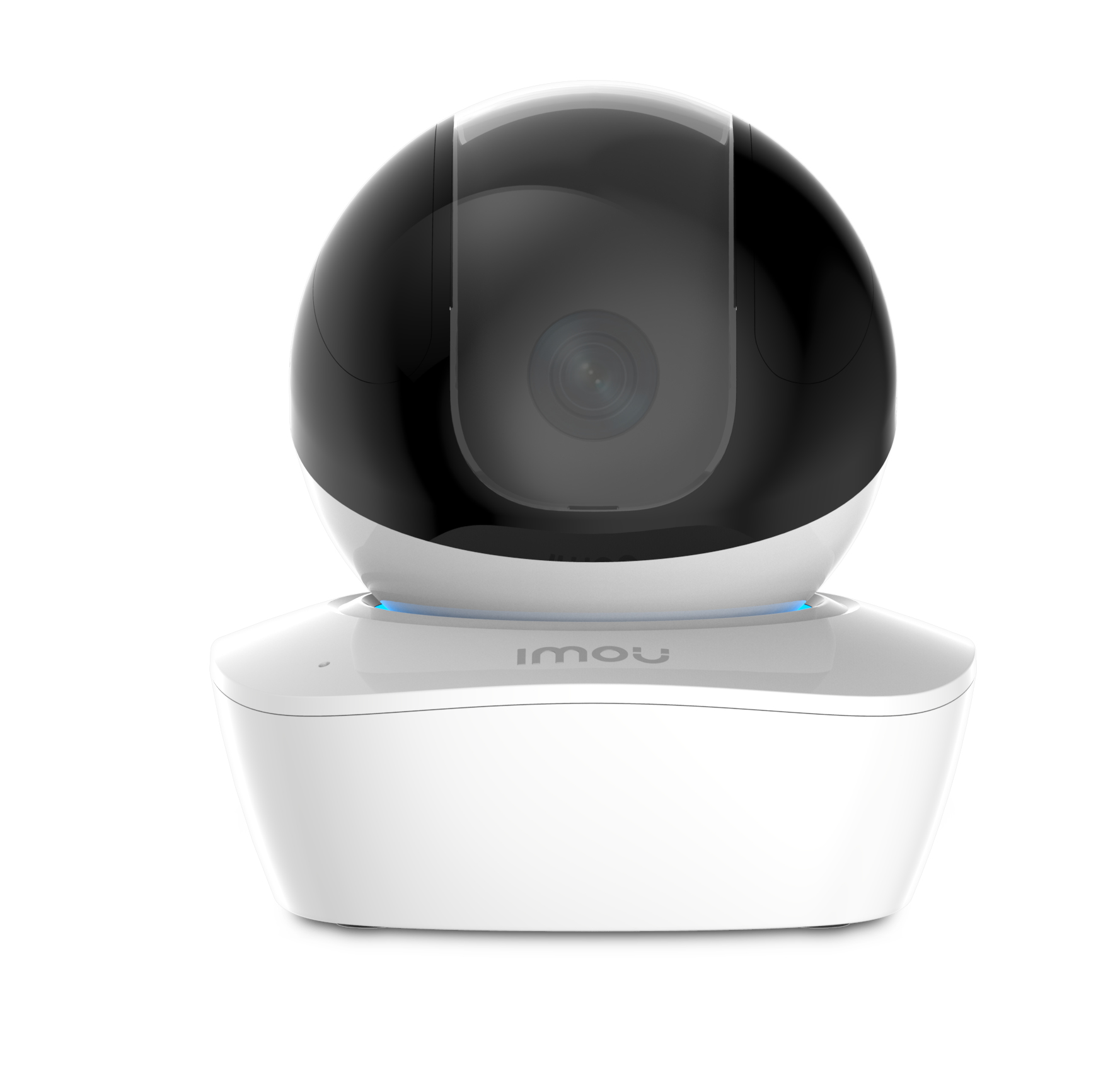

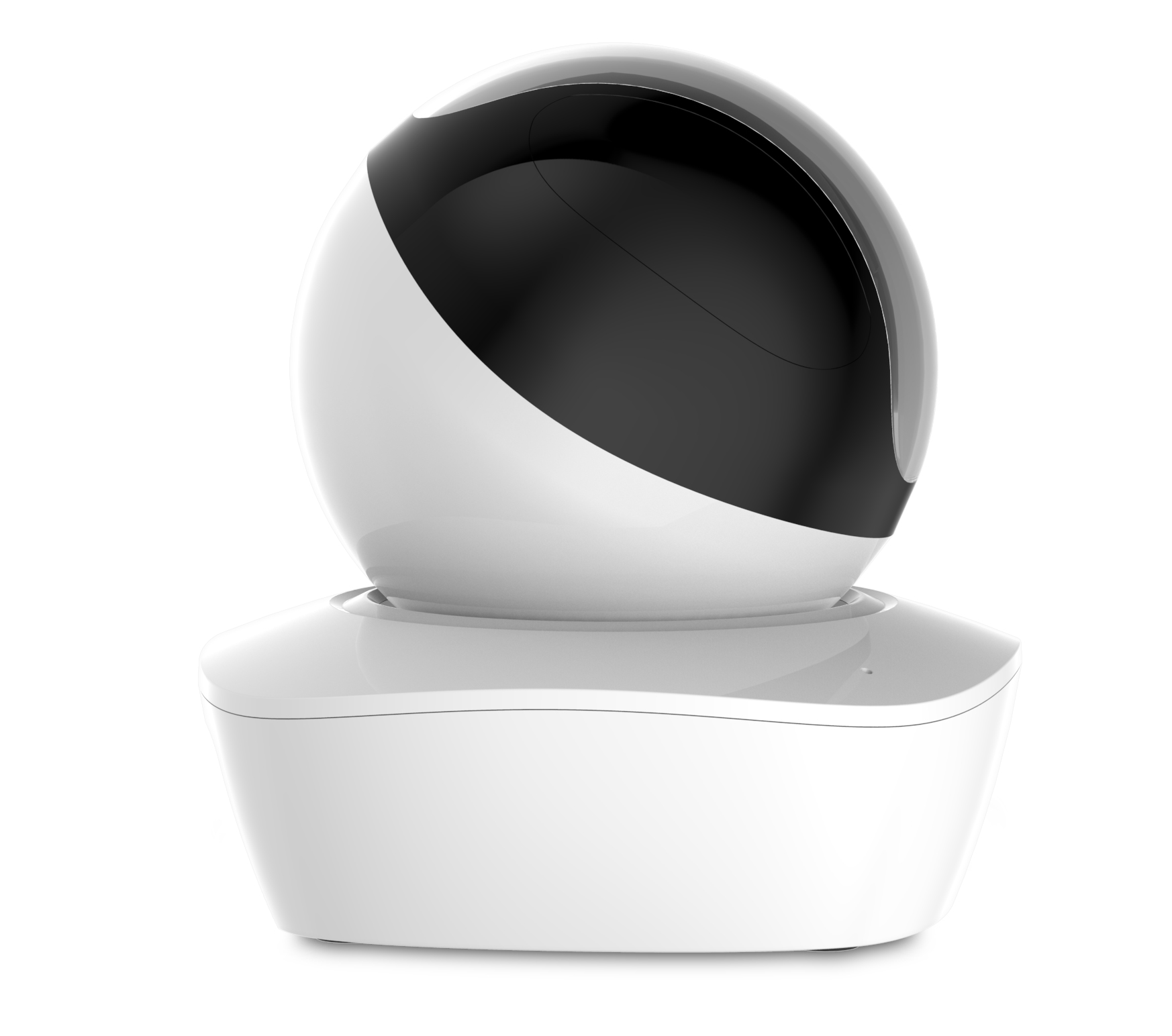

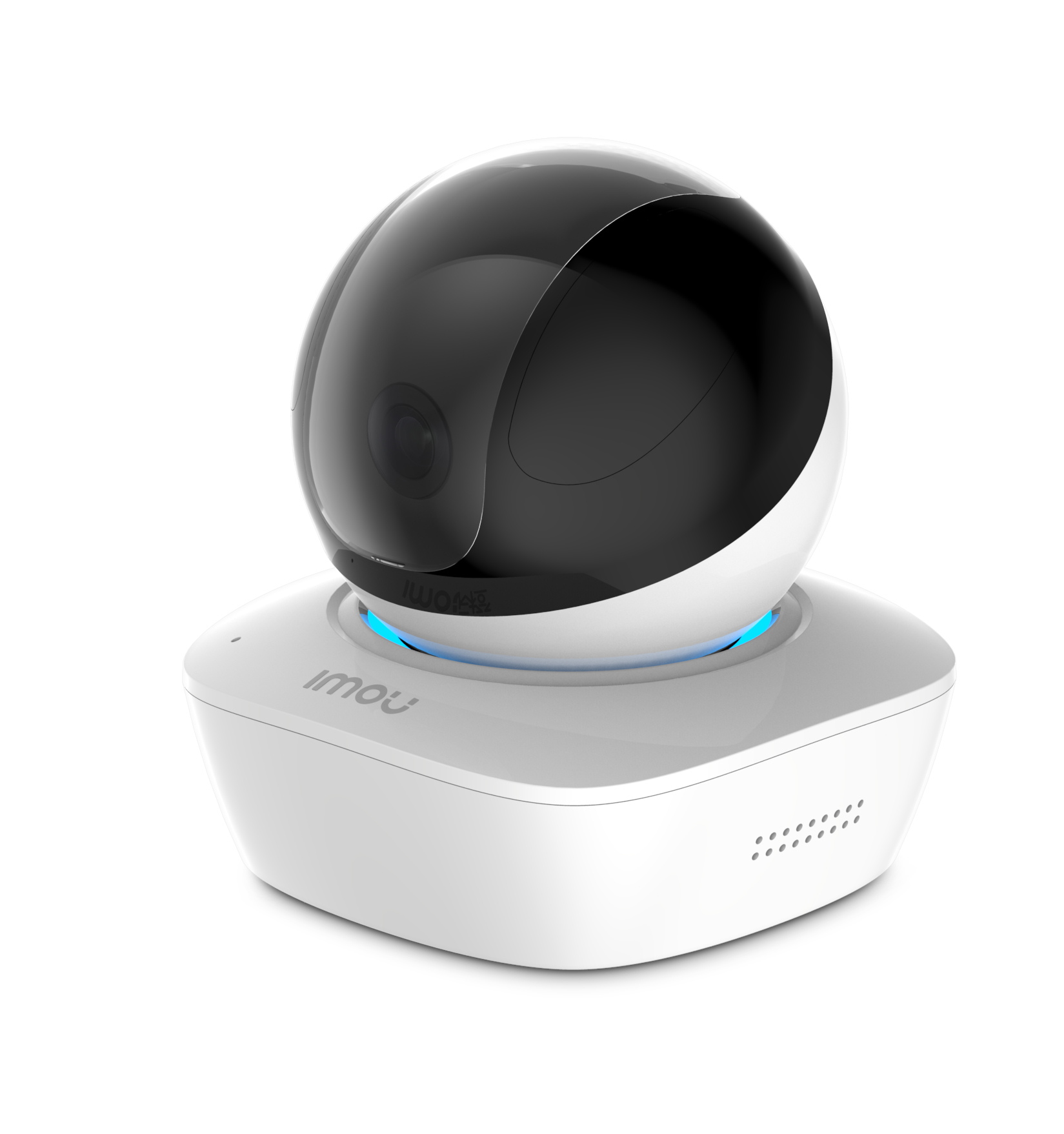

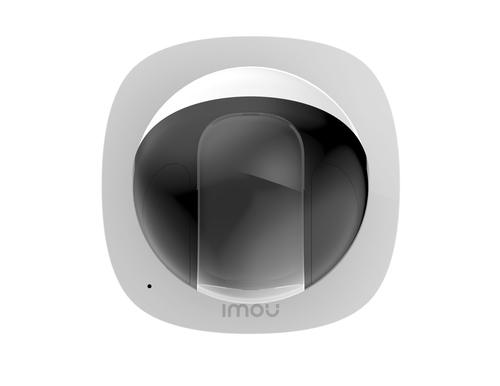

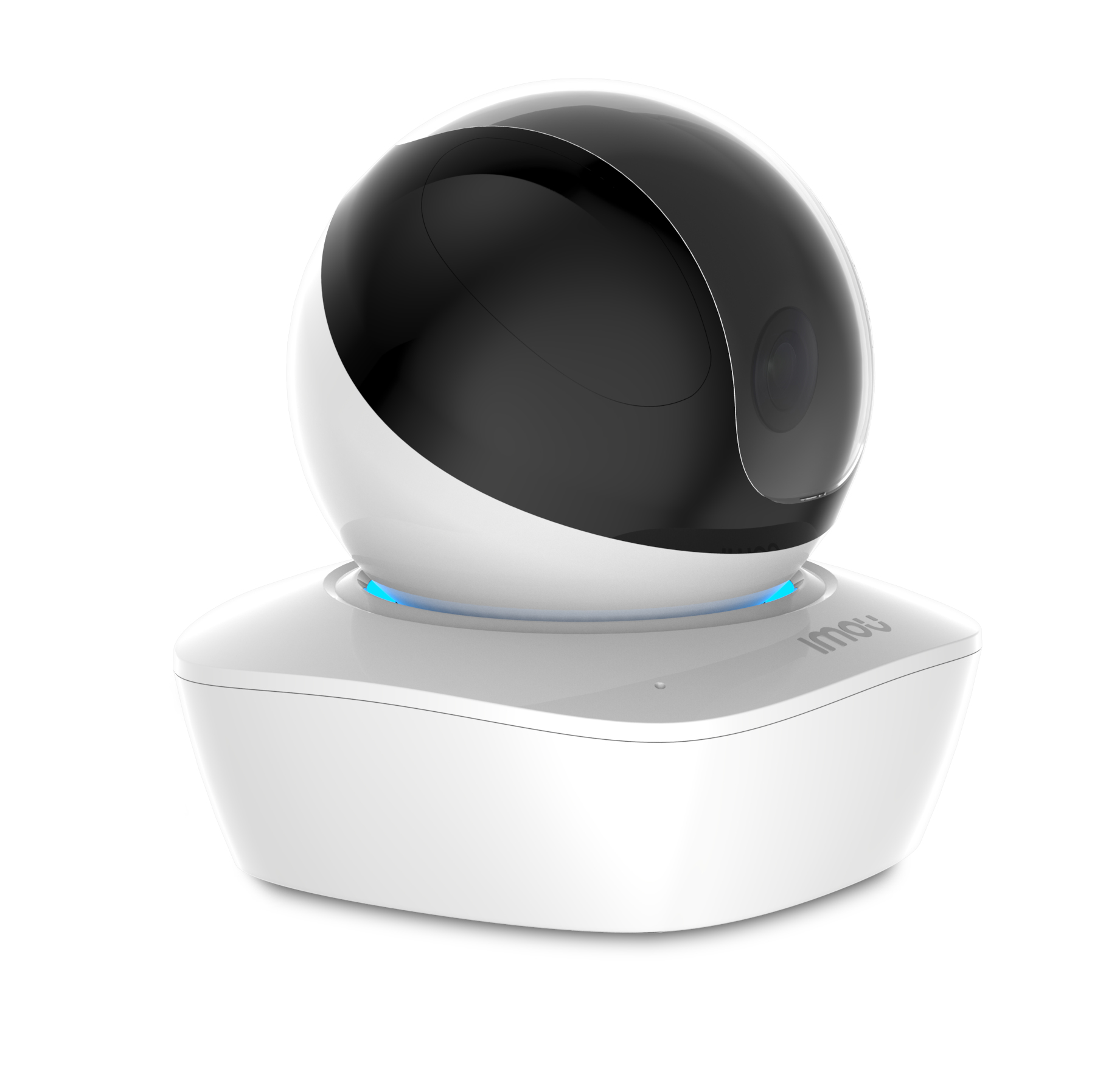

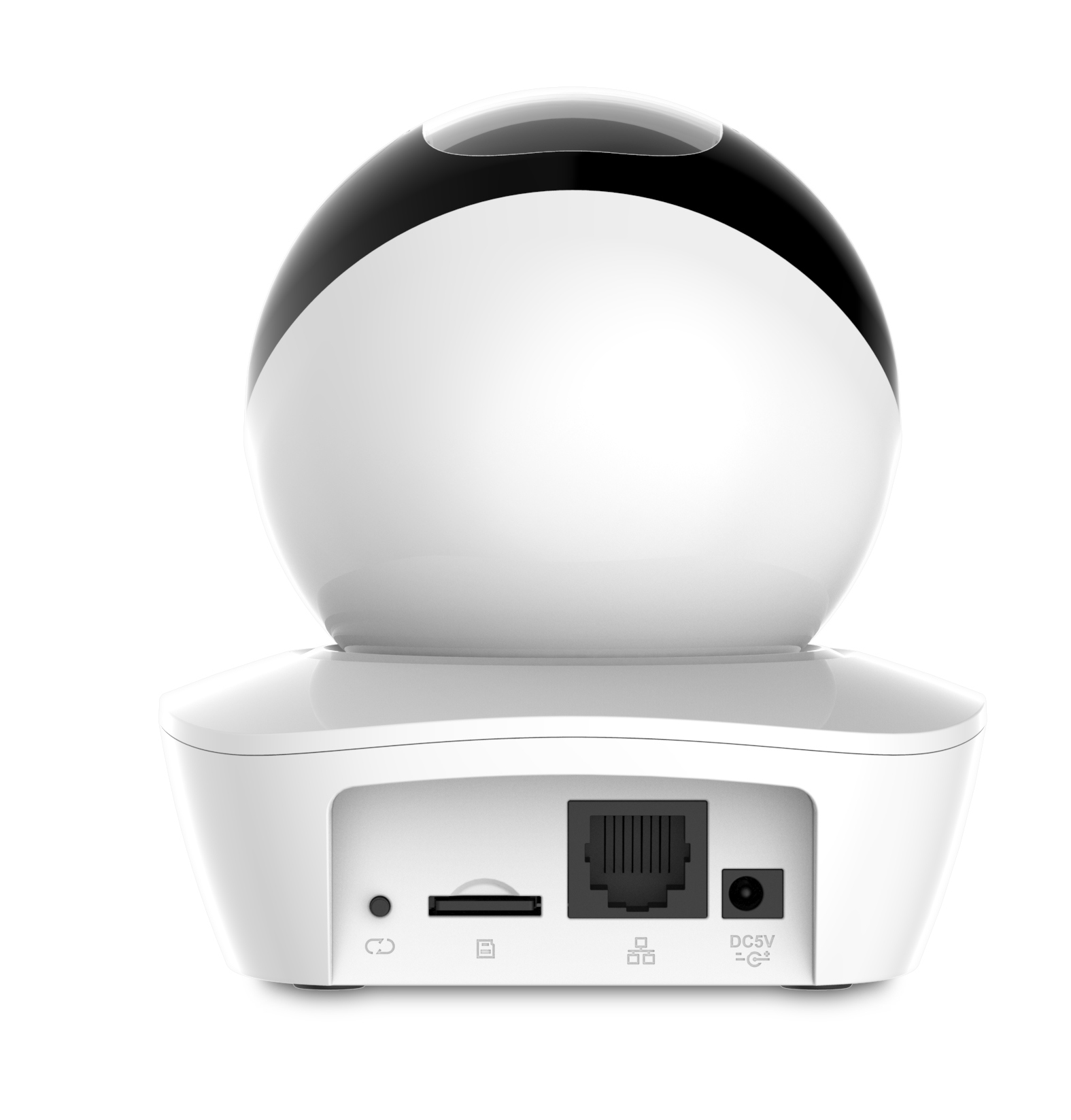

Ranger Pro Z
Model Ranger Pro ZPart no. IPC-A46ZP-5G-IMOUEAN 6939554966309
51 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight250 g
- ColourBlack, White
- Form factorSpherical
- Camera pan controlYes
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 250 g
- Colour
- Black, White
- Form factor
- Spherical
- Camera pan control
- Yes
- Brand
- Imou
- Category
- Security Camera
- Model
- Ranger Pro Z
- Part numbers
- IPC-A46ZP-5G-IMOU, RANGER PRO Z 4MP, IPC-A26Z-5G-IMOU, IPC-A46ZN-IMOU
- EAN / UPC
- 6939554966309, 6939554966323
- Also known as
- Imou Ranger Pro Z Spherical IP security camera Indoor 1920 x 1080 pixels Desk
Specifications
51 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| Certification | CE, FCC, UL |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Desk |
| Product colour | Black, White |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 130.7° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 355° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 3x |
| Lens diameter | 9 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264, H.265 |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 128 GB |
Security
| Specification | Value |
|---|---|
| Motion sensor | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 10 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 0 - 93% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 101 mm |
| Diameter | 9.4 cm |
| Weight | 250 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | USB |
| Mounting kit | Yes |
| Manual | Yes |
