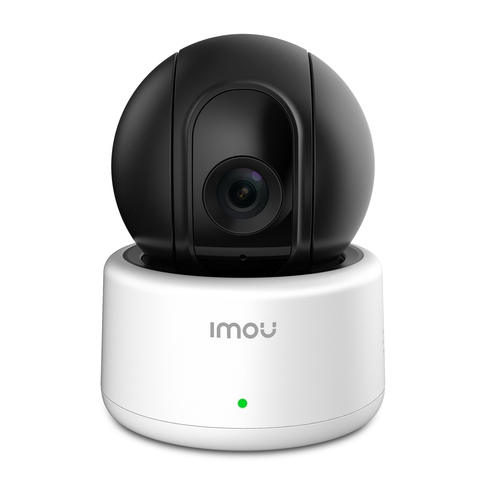

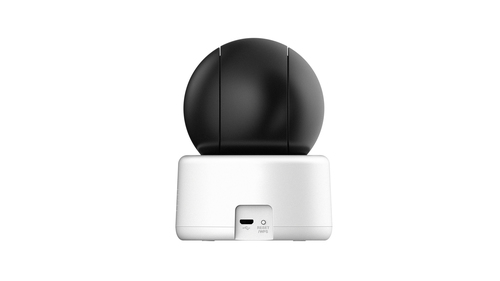

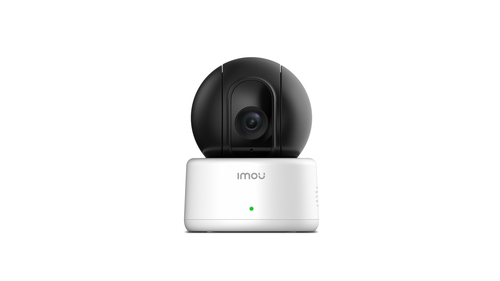

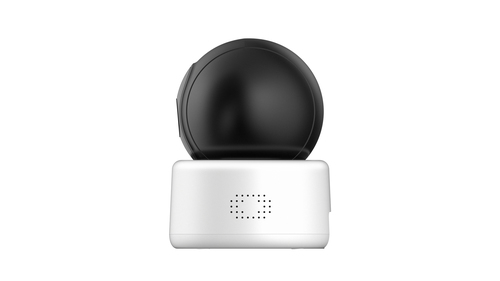

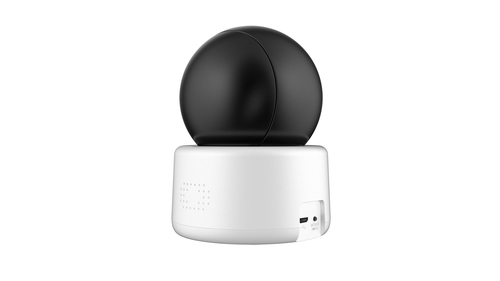

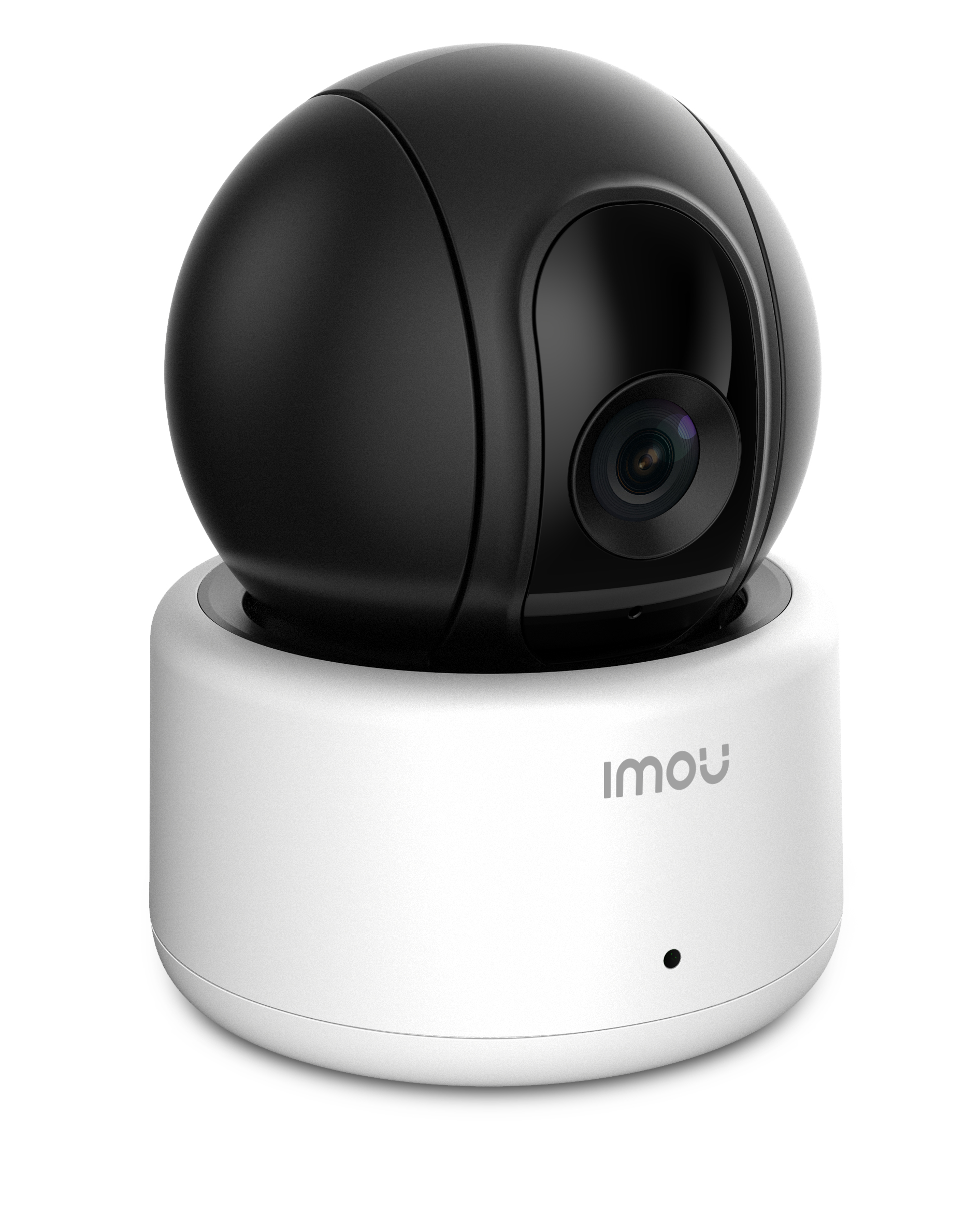

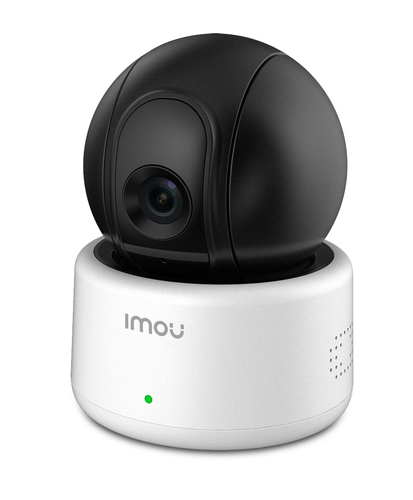

Ranger Dome IP security camera Indoor
1280 x 720 pixels Ceiling/wall
Model RangerPart no. IPC-A12-IMOU
45 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight262 g
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 262 g
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Imou
- Category
- Security Camera
- Model
- Ranger
- Part numbers
- IPC-A12-IMOU, IPC-A12N-IMOU, RANGER
- Also known as
- Imou Ranger Dome IP security camera Indoor 1280 x 720 pixels Ceiling/wall
Specifications
45 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wireless |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | No |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Tilt angle range | -5 - 90° |
| Pan range | 0 - 355° |
| Camera shutter speed | 1/3s~1/100000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1280 x 720 pixels |
| Total megapixels | 1 MP |
| Frame rate | 30 fps |
| Digital Wide Dynamic Range (DWDR) | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC output voltage | 5 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 110 mm |
| Diameter | 10.4 cm |
| Weight | 262 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 500 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
