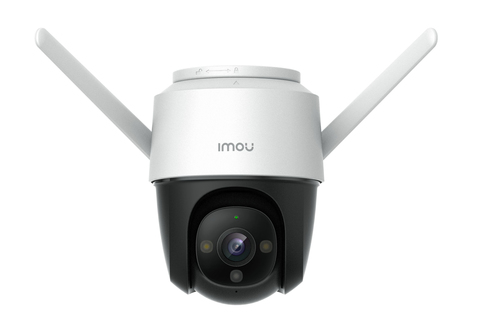

IPC-S22FN Turret IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/Wall/Pole
Model IPC-S22FNPart no. IPC-S22FN-0360B-IMOUEAN 6939554991790
47 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight565 g
- ColourWhite
- Form factorTurret
- Camera pan controlYes
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 565 g
- Colour
- White
- Form factor
- Turret
- Camera pan control
- Yes
- Brand
- Imou
- Category
- Security Camera
- Model
- IPC-S22FN
- Part number
- IPC-S22FN-0360B-IMOU
- EAN / UPC
- 6939554991790
- Also known as
- Imou IPC-S22FN Turret IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole
Specifications
47 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired & Wireless |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 89° |
| Lens viewing angle, vertical | 46° |
| Lens viewing angle, diagonal | 105° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 355° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 16x |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264, H.265 |
| Supported video modes | 1080p |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Security
| Specification | Value |
|---|---|
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 6.2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 138.4 mm |
| Depth | 121.7 mm |
| Height | 257.5 mm |
| Weight | 565 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
