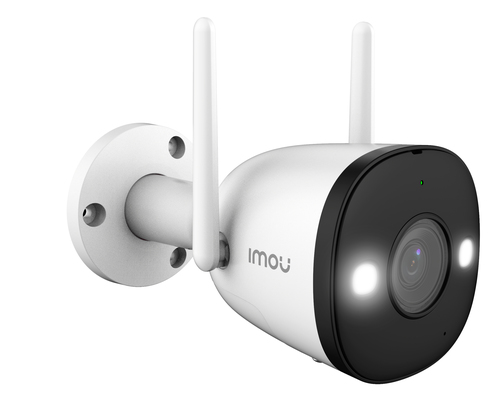

IPC-F22FP Bullet IP security camera Indoor & outdoor
1920 x 1080 pixels Wall
Model IPC-F22FPPart no. IPC-F22FP 2.8 MM
51 specifications
- ConnectivityWired
- TypeIP security camera
- Weight280 g
- ColourBlack, White
- Form factorBullet
- Lens viewing angle, horizontal102°
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 280 g
- Colour
- Black, White
- Form factor
- Bullet
- Lens viewing angle, horizontal
- 102°
- Brand
- Imou
- Category
- Security Camera
- Model
- IPC-F22FP
- Part number
- IPC-F22FP 2.8 MM
- Also known as
- Imou IPC-F22FP Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Wall
Specifications
51 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Certification | CE, FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | Black, White |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 102° |
| Lens viewing angle, vertical | 54° |
| Lens viewing angle, diagonal | 120° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Digital zoom | 16x |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264, H.265 |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 5.1 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 147.7 mm |
| Depth | 74.2 mm |
| Height | 74.2 mm |
| Weight | 280 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
