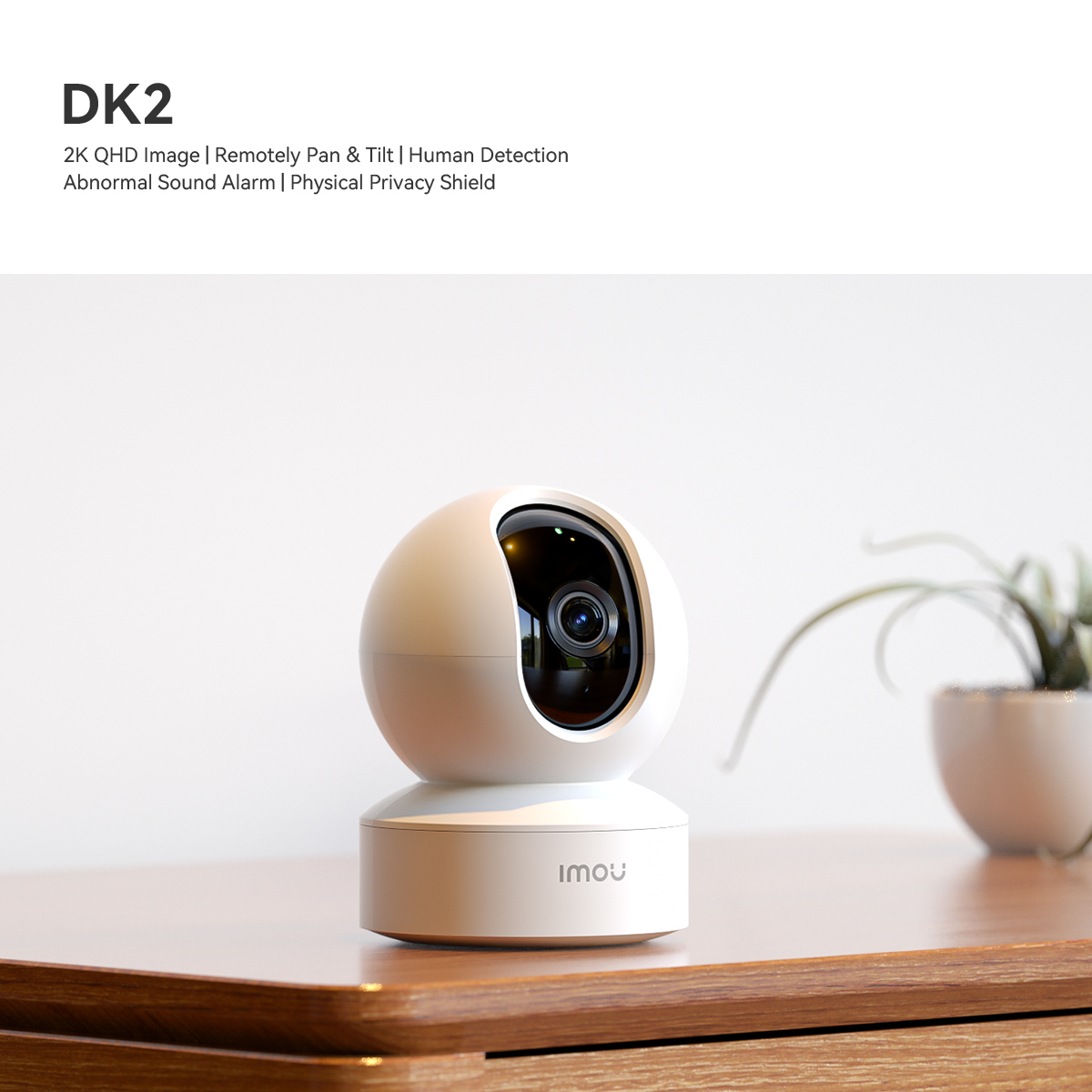

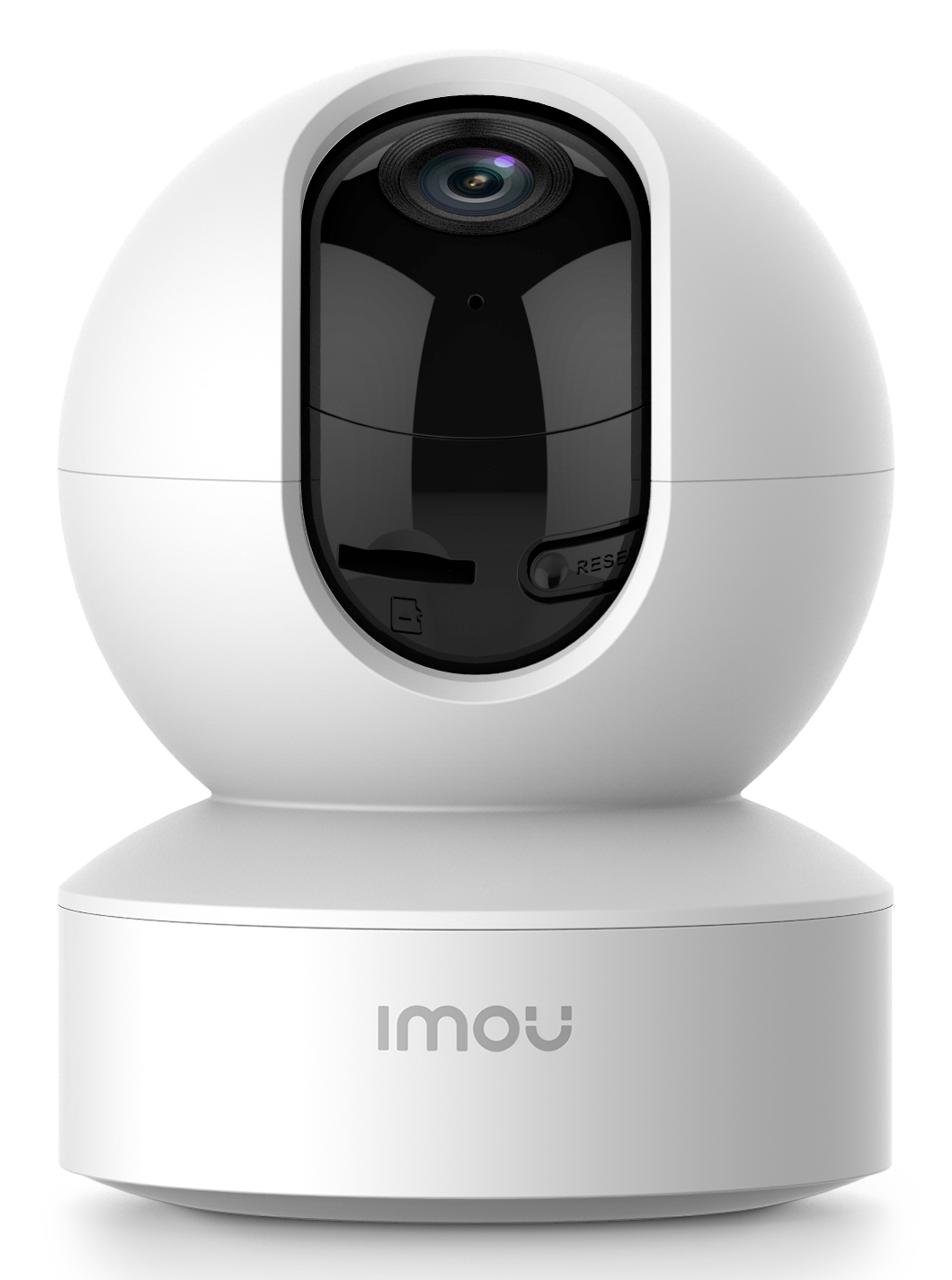

DK2 3MP
Model DK2 3MPPart no. IPC-DK2-3H1W-IMOUEAN 6976391038219
62 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight183 g
- ColourWhite
- Mounting typeDesk
- Angle of rotation360°
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 183 g
- Colour
- White
- Mounting type
- Desk
- Angle of rotation
- 360°
- Brand
- Imou
- Category
- Security Camera
- Model
- DK2 3MP
- Part number
- IPC-DK2-3H1W-IMOU
- EAN / UPC
- 6976391038219
- Also known as
- Imou DK2 3MP IP security camera Indoor 2304 x 1296 pixels Desk
Specifications
62 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| Auto-tracking | Yes |
| Day/night mode | Yes |
| Certification | CE, UKCA |
Design
| Specification | Value |
|---|---|
| Mounting type | Desk |
| Product colour | White |
| LED indicators | Yes |

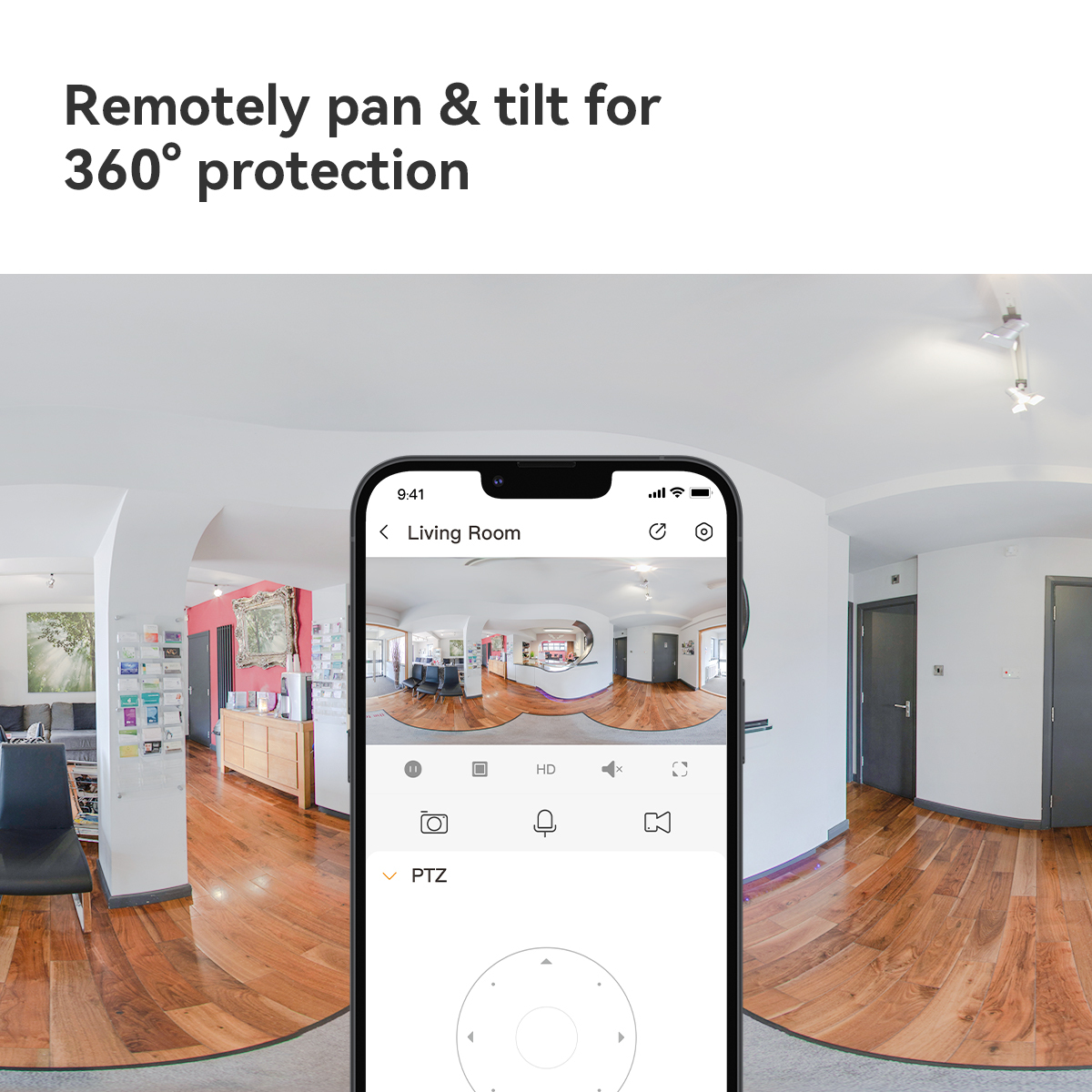

Camera
| Specification | Value |
|---|---|
| Angle of rotation | 360° |
| Tilt angle range | -10 - 70° |
| Pan range | 0 - 355° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2304 x 1296 pixels |
| Total megapixels | 3 MP |
| Video compression formats | H.264, H.265 |
| Frame rate | 20 fps |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
| Audio detection | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Built-in siren | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Privacy protection | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |

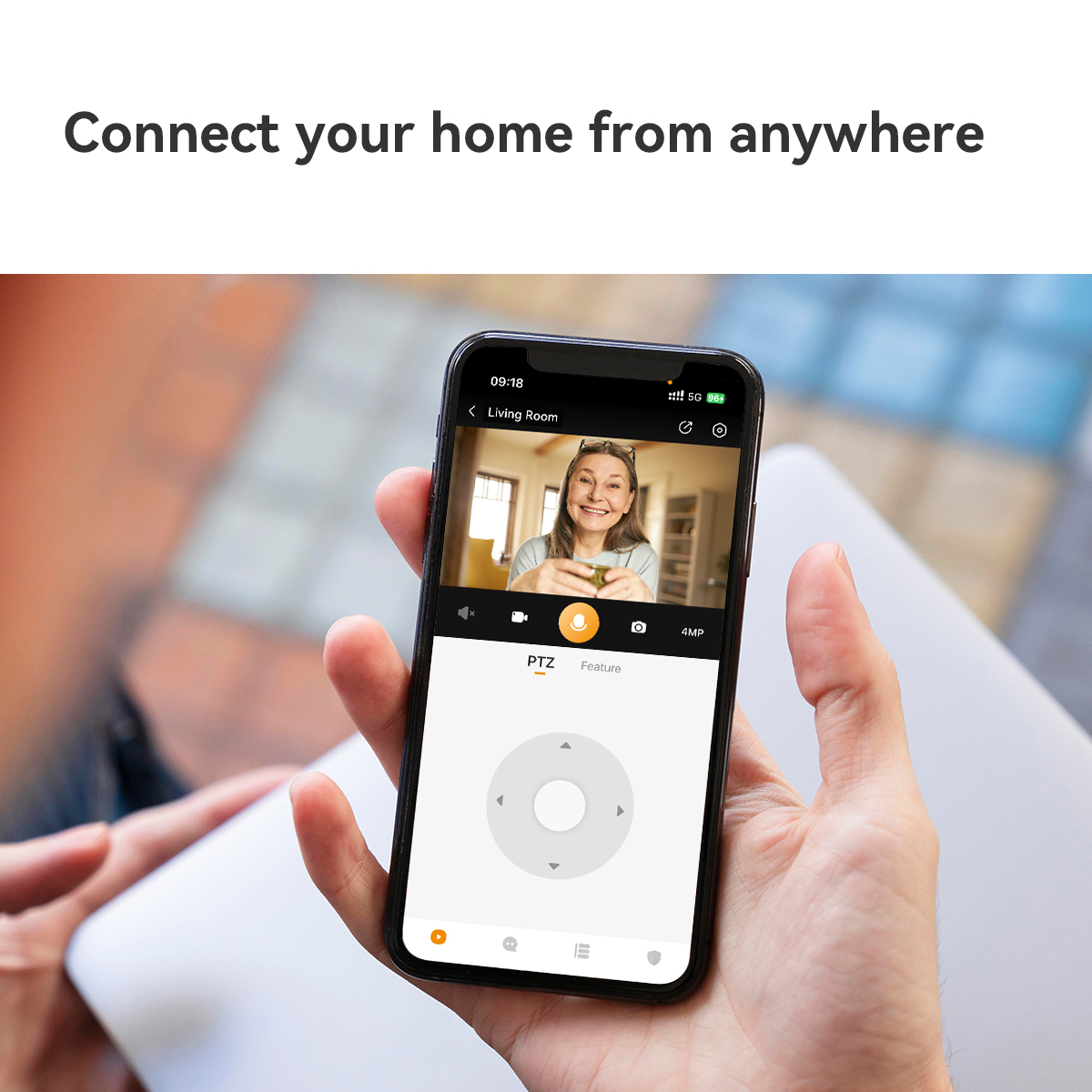

| Smartphone/tablet remote support | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 5 W |
| DC output voltage | 5 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 80 mm |
| Height | 110 mm |
| Weight | 183 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Mounting kit | Yes |
| Screws included | Yes |
