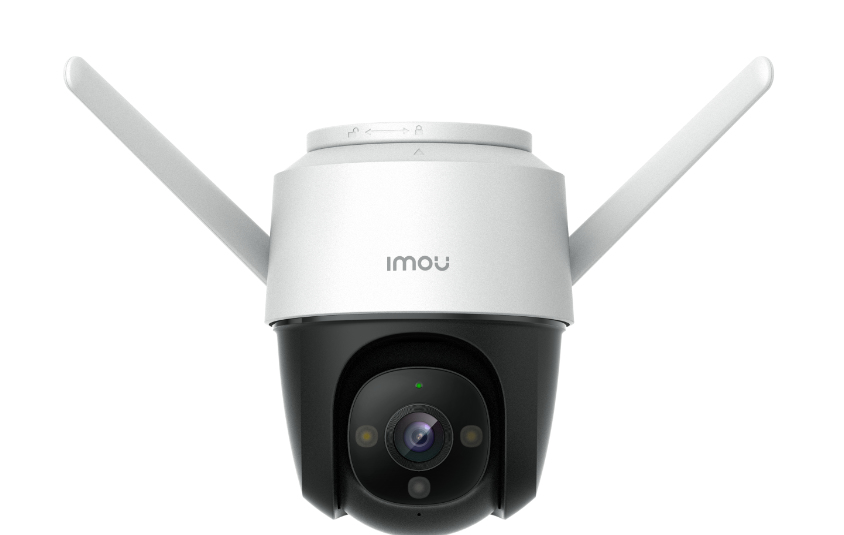

Crusier Dome IP security camera Outdoor
1920 x 1080 pixels Ceiling/Wall/Pole
Model CrusierPart no. IPC-S22FN-IMOU
55 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight565 g
- ColourBlack, White
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 565 g
- Colour
- Black, White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Imou
- Category
- Security Camera
- Model
- Crusier
- Part number
- IPC-S22FN-IMOU
- Also known as
- Imou Crusier Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole
Specifications
55 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired & Wireless |
| Day/night mode | Yes |
| Antenna type | External |
| Certification | CE, FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | Black, White |
| Housing material | Plastic |
| Protection features | Waterproof |
| International Protection (IP) code | IP66 |
| Weatherproof | Yes |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 355° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Digital zoom | 16x |
| Observe distance | 120 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264, H.265 |
| Video compression formats | H.264, H.265 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 6.2 W |
| DC output voltage | 12 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 138.4 mm |
| Depth | 121.7 mm |
| Height | 257.5 mm |
| Weight | 565 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
