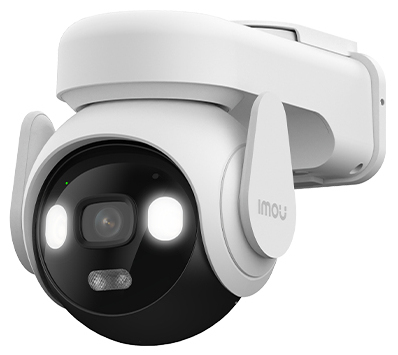

AOV PT Pro Kit
Model AOV PT Pro KitPart no. IPC-UA7E-5M0T2-EU/FSP14
68 specifications
- Battery10000 mAh
- ConnectivityWireless
- TypeIP security camera
- Weight610 g
- ColourWhite
- Form factorTurret
Overview
- Battery
- 10000 mAh
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 610 g
- Colour
- White
- Form factor
- Turret
- Brand
- Imou
- Category
- Security Camera
- Model
- AOV PT Pro Kit
- Part number
- IPC-UA7E-5M0T2-EU/FSP14
- Also known as
- Imou AOV PT Pro Kit Turret IP security camera Outdoor 2880 x 1620 pixels Wall
Specifications
68 specifications in 20 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wireless |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Plastic |
| Protection features | Waterproof |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 89° |
| Lens viewing angle, vertical | 47° |
| Lens viewing angle, diagonal | 107° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 340° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Digital zoom | 8x |
| Maximum aperture number | 1 |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 25 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2880 x 1620 pixels |
| Total megapixels | 5 MP |
| Video compression formats | H.265, H.264 |
| Video recording | Yes |
| Frame rate | 15 fps |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | No |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Mobile network connection | Yes |
| SIM card slot | Yes |
| Mobile network generation | 4G |
| 4G standard | LTE-TDD & LTE-FDD |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Intelligent Video Surveillance (IVS) system features | Human detection, Vehicle detection |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| Smartphone/tablet remote support | Yes |
| Management software | Imou App |
Power
| Specification | Value |
|---|---|
| Power source type | Solar, Battery |
| Power consumption (typical) | 3.5 W |
| DC output voltage | 5 |
| DC output current | 2 A |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 10000 mAh |
| Rechargeable battery | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | iOS, Android |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Height | 142 mm |
| Length | 177 mm |
| Weight | 610 g |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Quick start guide | Yes |
