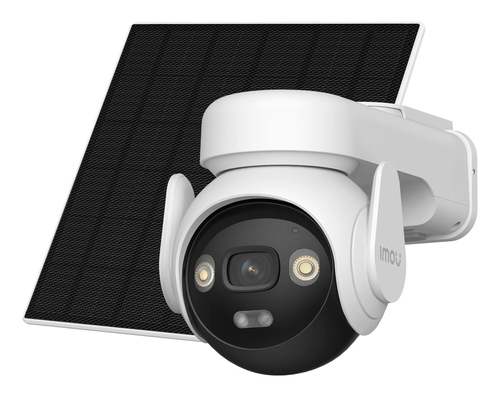

AOV PT 5MP
Model AOV PT 5MPPart no. IPC-B7ED-5M0TEA-EU/FSP14EAN 6976391032484
60 specifications
- Battery10000 mAh
- ConnectivityWireless
- TypeIP security camera
- Weight610 g
- ColourBlack, White
- Form factorTurret
Overview
- Battery
- 10000 mAh
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 610 g
- Colour
- Black, White
- Form factor
- Turret
- Brand
- Imou
- Category
- Security Camera
- Model
- AOV PT 5MP
- Part numbers
- IPC-B7ED-5M0TEA-EU/FSP14, IPC-B7ED-5M1TEA-EU/FSP14
- EAN / UPC
- 6976391032484, 6971927235704
- Also known as
- Imou AOV PT 5MP Turret IP security camera Outdoor 2880 x 1620 pixels Wall
Specifications
60 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wireless |
| Auto-tracking | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Wall |
| Product colour | Black, White |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 76° |
| Lens viewing angle, vertical | 41° |
| Lens viewing angle, diagonal | 91° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 340° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Digital zoom | 8x |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 25 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2880 x 1620 pixels |
| Total megapixels | 5 MP |
| Video formats supported | H.264, H.265 |
| Frame rate | 15 fps |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
| Number of microphones | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency band | 2.4 GHz |
| 4G standard | LTE-TDD & LTE-FDD |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Maximum memory card size | 512 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Intelligent Video Surveillance (IVS) system features | Human detection |
Power
| Specification | Value |
|---|---|
| Power source type | DC, Solar |
| Power consumption (typical) | 3.5 W |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 10000 mAh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -10 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 177 mm |
| Depth | 110 mm |
| Height | 142 mm |
| Weight | 610 g |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Packaging data
| Specification | Value |
|---|---|
| Package width | 222 mm |
| Package depth | 181 mm |
| Package height | 177 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
