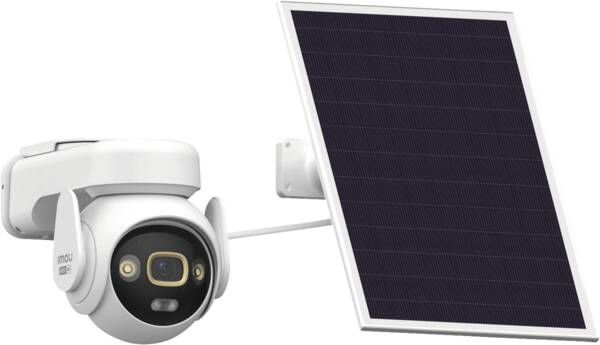

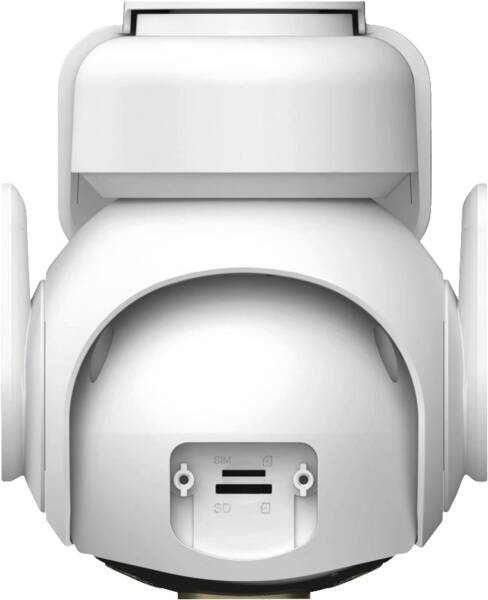

AOV PT 4K Kit
Model AOV PT 4K KitPart no. IPC-SA7E-T-8M1T3EAN 6937479644586
72 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight580 g
- Form factorDome
- Camera pan controlYes
- Sensor typeCMOS
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 580 g
- Form factor
- Dome
- Camera pan control
- Yes
- Sensor type
- CMOS
- Brand
- Imou
- Category
- Security Camera
- Model
- AOV PT 4K Kit
- Part numbers
- IPC-SA7E-T-8M1T3, IPC-SA7E-T-8M0T3/FSP008
- EAN / UPC
- 6937479644586, 6937479645330
- Also known as
- Imou AOV PT 4K Kit Dome IP security camera Outdoor 3840 x 2160 pixels
Specifications
72 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wireless |
| PTZ control | Yes |
| Auto-tracking | Yes |
| Day/night mode | Yes |
| Remote viewing | Yes |
| Built-in light | Yes |
| Certification | CE |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
| Weatherproof | Yes |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Field of view (FOV) angle | 89° |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 89° |
| Lens viewing angle, vertical | 46° |
| Lens viewing angle, diagonal | 105° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 340° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 3840 x 2160 pixels |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 8x |
| Fixed focus | Yes |
| Maximum aperture number | 1.6 |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Video compression formats | H.265 |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 2160p |
| Video recording | Yes |
| Frame rate | 15 fps |
| Video intelligence analytic | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Built-in siren | Yes |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| Smartphone/tablet remote support | Yes |
| Management software | Imou App |
Power
| Specification | Value |
|---|---|
| Power source type | Battery, Solar, DC |
| Power consumption (max) | 3.5 W |
| DC output voltage | 5 |
| DC output current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Height | 142 mm |
| Length | 177 mm |
| Weight | 580 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Mounting kit | Yes |
| Screws included | Yes |
| Manual | Yes |
