A1 dual
Model A1 dualPart no. IPC-S20EP-6M0S-IMOUEAN 6937479642018
67 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight200 g
- ColourBlack, White
- Form factorTurret
- Lens viewing angle, horizontal91°
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 200 g
- Colour
- Black, White
- Form factor
- Turret
- Lens viewing angle, horizontal
- 91°
- Brand
- Imou
- Category
- Security Camera
- Model
- A1 dual
- Part number
- IPC-S20EP-6M0S-IMOU
- EAN / UPC
- 6937479642018
- Also known as
- Imou A1 dual Turret IP security camera Outdoor 2304 x 1296 pixels Ceiling/Desk
Specifications
67 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired & Wireless |
| Auto-tracking | Yes |
| Day/night mode | Yes |
| Built-in light | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling/Desk |
| Product colour | Black, White |
| LED indicators | Yes |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 91° |
| Lens viewing angle, vertical | 47° |
| Lens viewing angle, diagonal | 107° |
| Tilt angle range | -5 - 80° |
| Pan range | 0 - 355° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 2 |
| Zoom capability | Yes |
| Digital zoom | 8x |
| Focal length range | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 15 m |
| LED type | White |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2304 x 1296 pixels |
| Total megapixels | 6 MP |
| Video compression formats | H.264, H.265 |
| Frame rate | 15 fps |
Audio
| Specification | Value |
|---|---|

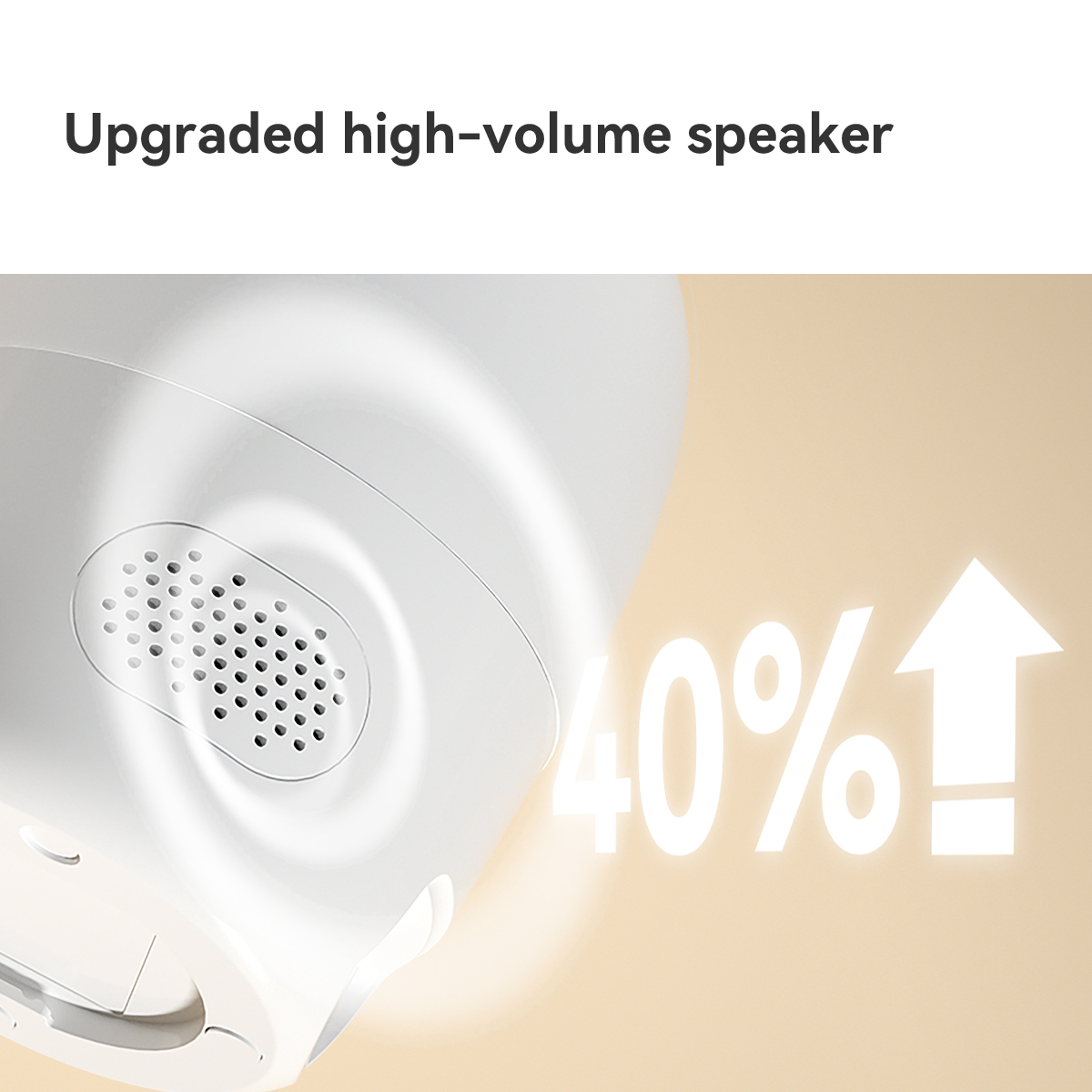

| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |

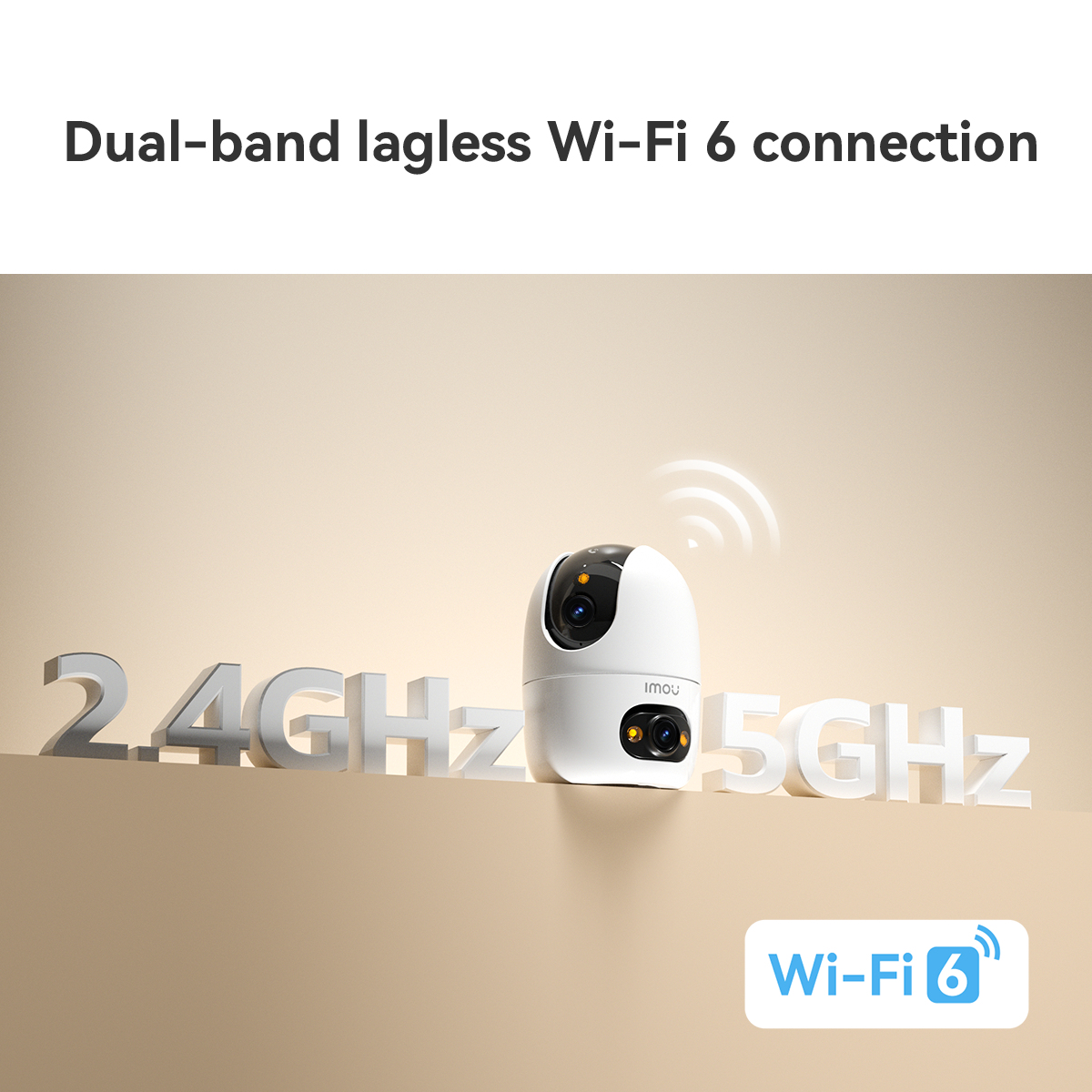

| Wi-Fi | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Built-in siren | Yes |
| Intelligent Video Surveillance (IVS) system features | Abnormal sound detection, Human detection, Pet detection |
| Privacy protection | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Cloud-managed | Yes |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 7.5 W |
| DC output voltage | 5 |
| DC output current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 77.4 mm |
| Height | 106.8 mm |
| Length | 77.4 mm |
| Weight | 200 g |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Mounting kit | Yes |
| Screws included | Yes |
| AC adapter included | Yes |
| Mounting template | Yes |
| Quick start guide | Yes |
