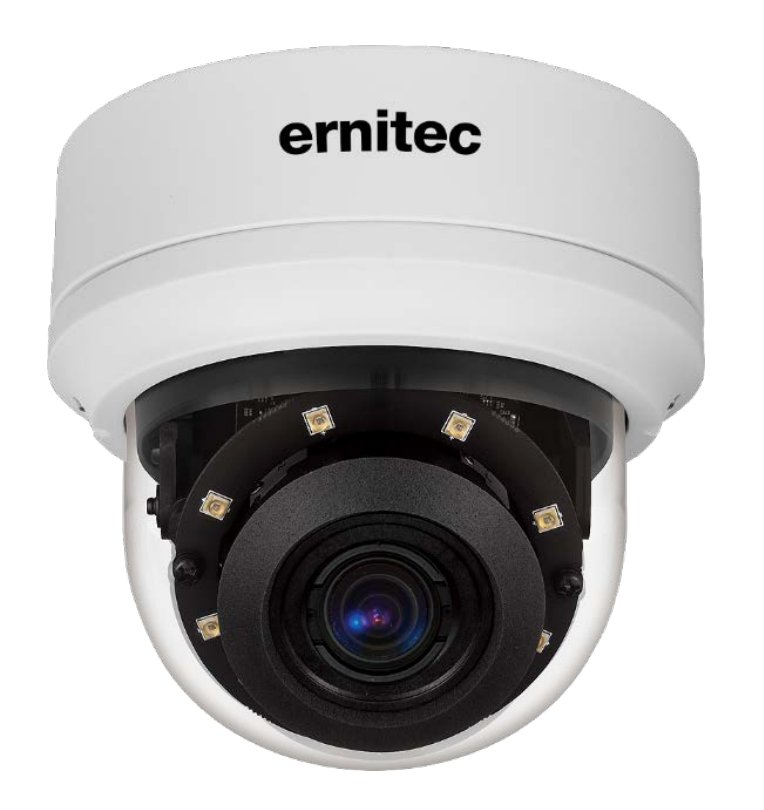

SX-343IR Dome IP security camera
2048 x 1536 pixels
Model SX-343IRPart no. 0070-04343IR
73 specifications
- ConnectivityWired
- TypeIP security camera
- Weight745 g
- ColourBlack, White
- Form factorDome
- Minimum illumination0.02 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 745 g
- Colour
- Black, White
- Form factor
- Dome
- Minimum illumination
- 0.02 lx
- Brand
- Ernitec
- Category
- Security Camera
- Model
- SX-343IR
- Part number
- 0070-04343IR
- Also known as
- Ernitec SX-343IR Dome IP security camera 2048 x 1536 pixels
Specifications
73 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Infrared (IR) cut-off filter | Yes |
| Light exposure modes | Auto, Manual |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Product colour | Black, White |
| Protection features | Vandal proof |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.02 lx |
| Field of view (FOV) angle | 102° |
| White balance | ATW, Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1 - 1/10000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 2048 x 1536 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Focal length range | 2.8 - 12 mm |
| Auto focus | Yes |
| Focus | Motorized |
| Maximum aperture number | 2.1 |
| Minimum aperture number | 1.4 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 6 |
| Infra-red wavelength | 850 nm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Video formats supported | H.264, M-JPEG |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 2560 x 1440 |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Analog signal format system | NTSC, PAL |
| NTSC resolutions | 2048 x 1536 pixels |
| PAL resolutions | 2048 x 1536 pixels |
| Video streaming | Yes |
| 3D NR (Noise Reduction) | Yes |
| Full HD | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | 2-way |
| Audio formats supported | G.711, G.726 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | IPv4/v6, TCP/IP, UDP, RTP, STPS, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, Upnp, IGMP, SNMP, QoS |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | SDXC |
| Maximum memory card size | 64 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Terminal block port | Yes |
Security
| Specification | Value |
|---|---|
| Password protection | Yes |
| Password protection type | Supervisor, User |
| Active tampering alarm | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC, PoE |
| AC input voltage | 24 V |
| Power consumption (typical) | 12.9 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 117.4 mm |
| Diameter | 13.4 cm |
| Weight | 745 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
