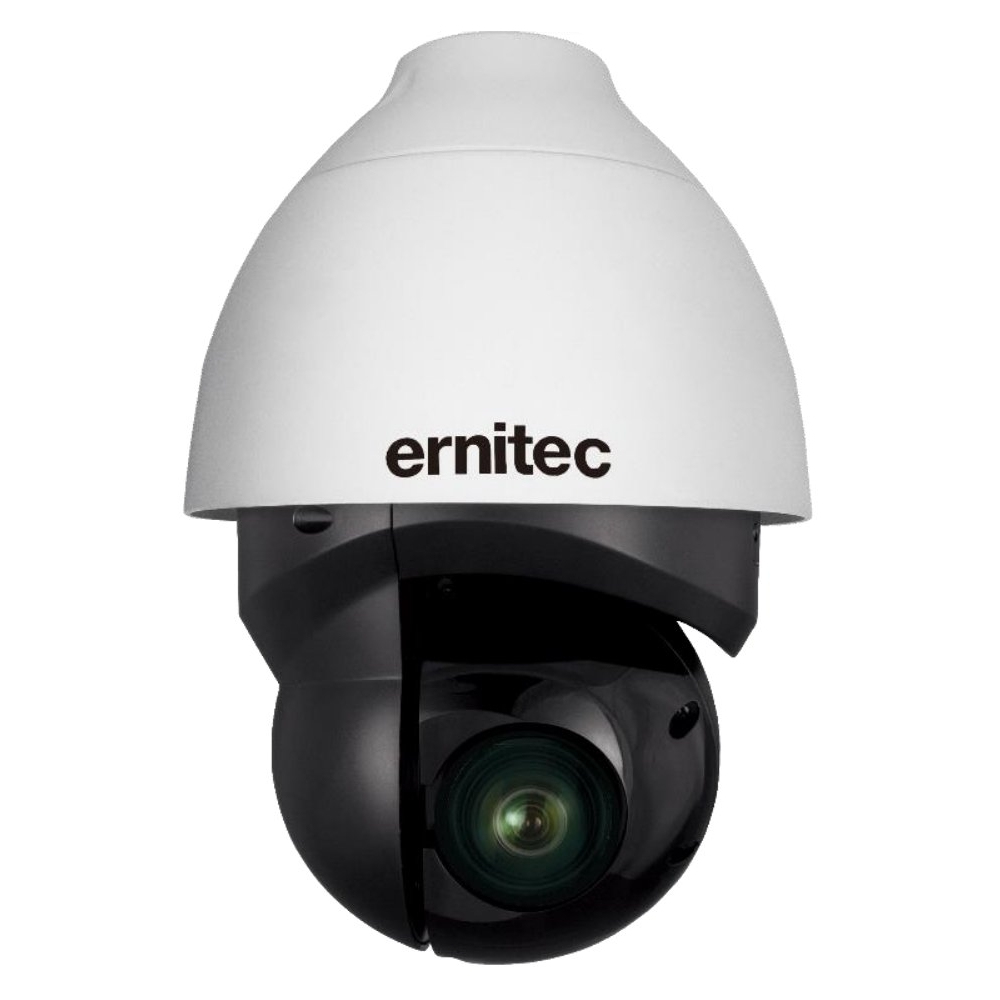

Ernitec Orion DX 822IR Outdoor

Model Orion DX 822IR OutdoorPart no. 0070-05822IREAN 5711783230151

79 specifications

ConnectivityWired
TypeIP security camera
Weight3.8 kg
ColourBlack, White
Form factorDome
Minimum illumination0.02 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 3.8 kg
Colour: Black, White
Form factor: Dome
Minimum illumination: 0.02 lx

Brand: Ernitec
Category: Security Camera
Model: Orion DX 822IR Outdoor
Part number: 0070-05822IR
EAN / UPC: 5711783230151
Also known as: Ernitec Orion DX 822IR Outdoor Dome IP security camera 1920 x 1080 pixels Ceiling

Specifications

79 specifications in 17 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Auto-tracking	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Built-in fan	Yes
Built-in heater	Yes
Languages support	German, English, Spanish, French, Italian, Russian
Number of languages	7

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling
Product colour	Black, White
International Protection (IP) code	IP66
Weatherproof	Yes
Fog proof	Yes

Camera

Specification	Value
Minimum illumination	0.02 lx
Field of view (FOV) angle	68.7°
Tilt angle range	-20 - 200°
Tilt preset speed	300 °/sec
Tilt speed	60 °/sec
Pan speed	90 °/sec
White balance	ATW, Auto, Indoor, Manual, Outdoor
Camera shutter type	Electronic
Camera shutter speed	1 - 1/10000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Number of effective pixels (H x V)	1920 x 1080 pixels

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	30x
Digital zoom	10x
Focal length range	4.3 - 129 mm
Maximum aperture number	4.7
Minimum aperture number	1.6

Night vision

Specification	Value
Night vision	Yes
Night vision distance	200 m
LED type	IR

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	H.264, H.264+, M-JPEG
Supported graphics resolutions	320 x 288 (QVGA), 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1920 x 1080 (HD 1080)
Supported video modes	720p, 1080p
Frame rate	60 fps
Video streaming	Yes
Noise reduction	Yes
Image stabilizer	Yes
3D NR (Noise Reduction)	Yes
Full HD	Yes
Privacy masking	Yes

Audio

Specification	Value
Audio system	2-way
Audio formats supported	G.711, G.726

Network

Specification	Value
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.3at
Supported network protocols	IPv4/v6, TCP/IP, UDP, RTP, STPS, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, Upnp, IGMP, SNMP, QoS, ARP
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Storage

Specification	Value
Card reader integrated	Yes
Compatible memory cards	SD, SDXC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
BNC output ports	1
Terminal block port	Yes

Security

Specification	Value
Password protection	Yes
Password protection type	Supervisor, User
Video motion detection	Yes

Management features

Specification	Value
Web browser	Yes

Power

Specification	Value
Power source type	AC, PoE
AC input voltage	24 V
Power consumption (max)	44 W
Power consumption (Power over Ethernet (PoE))	60 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Height	302 mm
Diameter	20.8 cm
Weight	3.8 kg

Packaging content

Specification	Value
Number of cameras	1
