Ernitec Deimos-Ultra-OWL-Thermal 10mm Dual Sensor Camera - NDAA
Ernitec

Deimos-Ultra-OWL-Thermal 10mm Dual Sensor Camera - NDAA

Model Deimos-Ultra-OWL-Thermal 10mm Dual Sensor Camera - NDAAPart no. 0070-09106EAN 5715328311084

68 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.8 kg
  • ColourWhite
  • Mounting typeCeiling/Wall/Pole
  • Camera pan controlNo
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.8 kg
Colour
White
Mounting type
Ceiling/Wall/Pole
Camera pan control
No
Brand
Ernitec
Model
Deimos-Ultra-OWL-Thermal 10mm Dual Sensor Camera - NDAA
Part number
0070-09106
EAN / UPC
5715328311084
Also known as
Ernitec Deimos-Ultra-OWL-Thermal 10mm Dual Sensor Camera - NDAA IP security camera Indoor & outdoor Ceiling/Wall/Pole

Specifications

68 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Thermal moduleYes
Wide Dynamic Range (WDR)Yes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Built-in lightYes
Dynamic range120 dB
Number of languages8
Thermal sensitivity (NETD)50 mK

Design

Mounting typeCeiling/Wall/Pole
Product colourWhite
International Protection (IP) codeIP66
WeatherproofYes

Camera

Camera pan controlNo
Minimum illumination0.005 lx
Field of view (FOV) angle (thermal module)17 x 13°
Lens viewing angle, horizontal40°
Lens viewing angle, vertical20°

Image sensor

Sensor typeCMOS
Number of sensors2
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
Effective sensor resolution (thermal module)256 x 192 pixels
Progressive scanYes
Number of effective pixels (H x V)2880 x 1620 pixels

Lens system

Focal length range4 mm
Fixed focal length4 mm
Fixed focal length (thermal module)10 mm

Night vision

Night visionYes
Night vision distance55 m
LED typeIR
Infra-red wavelength850 nm

Video

Total megapixels4 MP
Video intelligence analyticYes
3D NR (Noise Reduction)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Privacy maskingYes

Audio

Built-in speaker(s)Yes
Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711

Network

Ethernet LANYes
Wi-FiNo

Storage

Card reader integratedYes
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1

Security

Alarm input channels2
Alarm output channels2
Temperature sensorYes
Temperature measurement range-20 - 150 °C
Fire detectionYes
Human and vehicle targets classificationYes

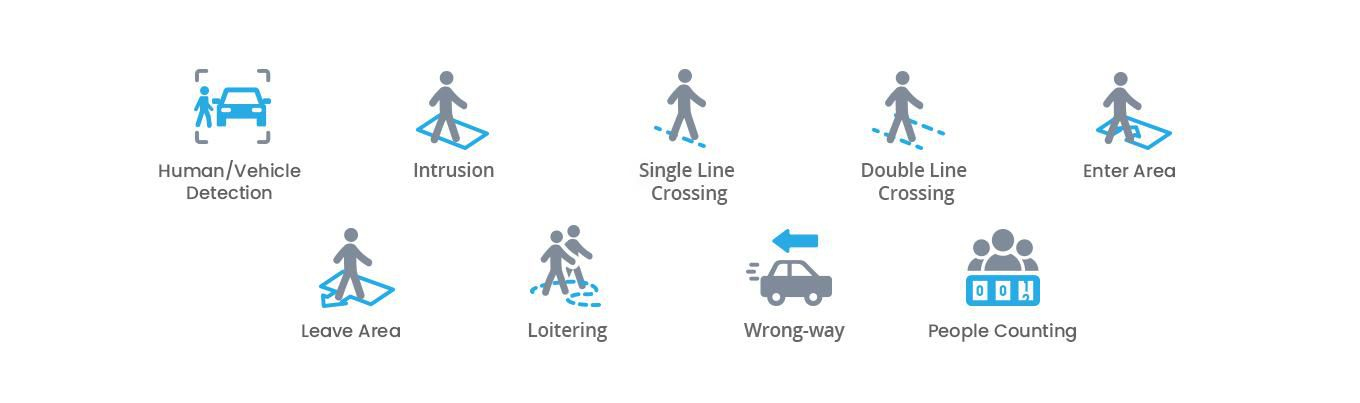

Intelligent Video Surveillance (IVS) system featuresIntrusion
MirrorYes
Video motion detectionYes

Power

Power source typePoE
Power consumption (max)12 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Weight1.8 kg

Packaging data

Package weight2.3 kg

Other features

Audio output1
Dimensions (WxDxH)303 x 95 x 107 mm
Warranty period5 year(s)
